Magnets deep pot AlNiCo with fitting tolerance
K0545

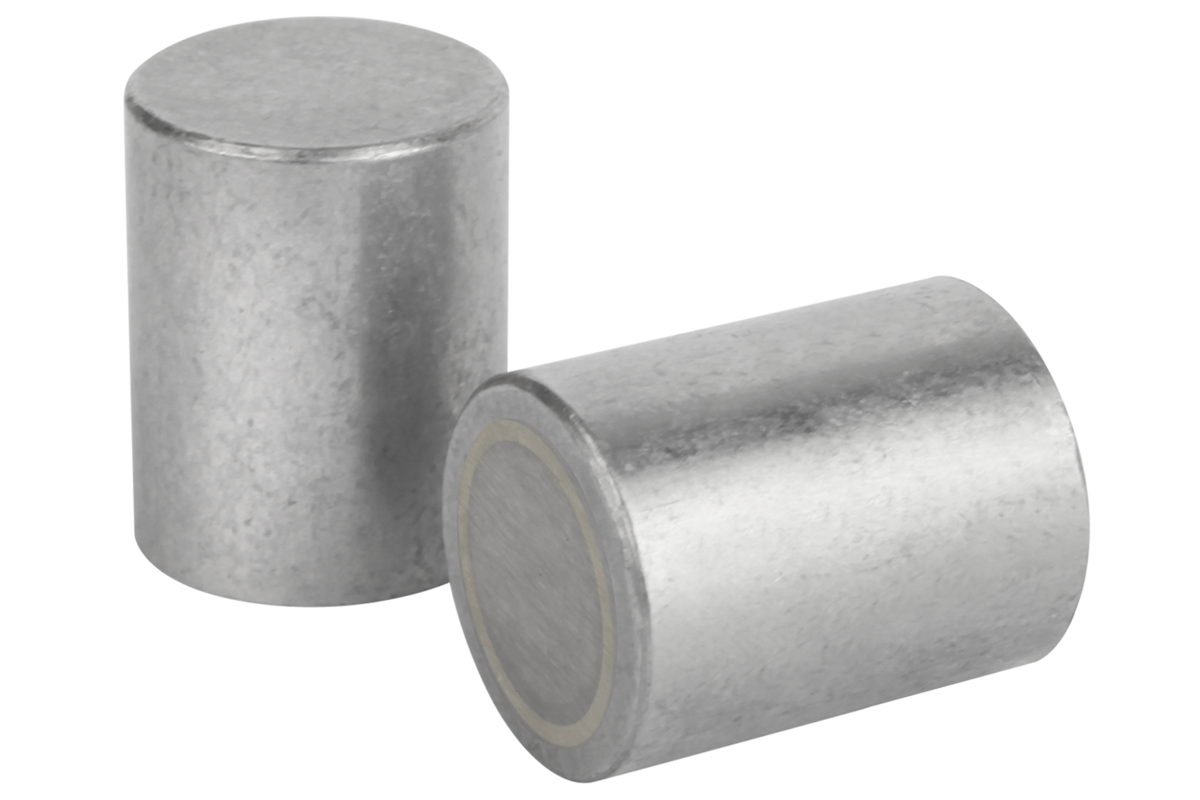

Magnets deep pot AlNiCo with fitting tolerance

go back

Item description/product images

DescriptionMaterial:Housing, steel.
Magnetic core AlNiCo.

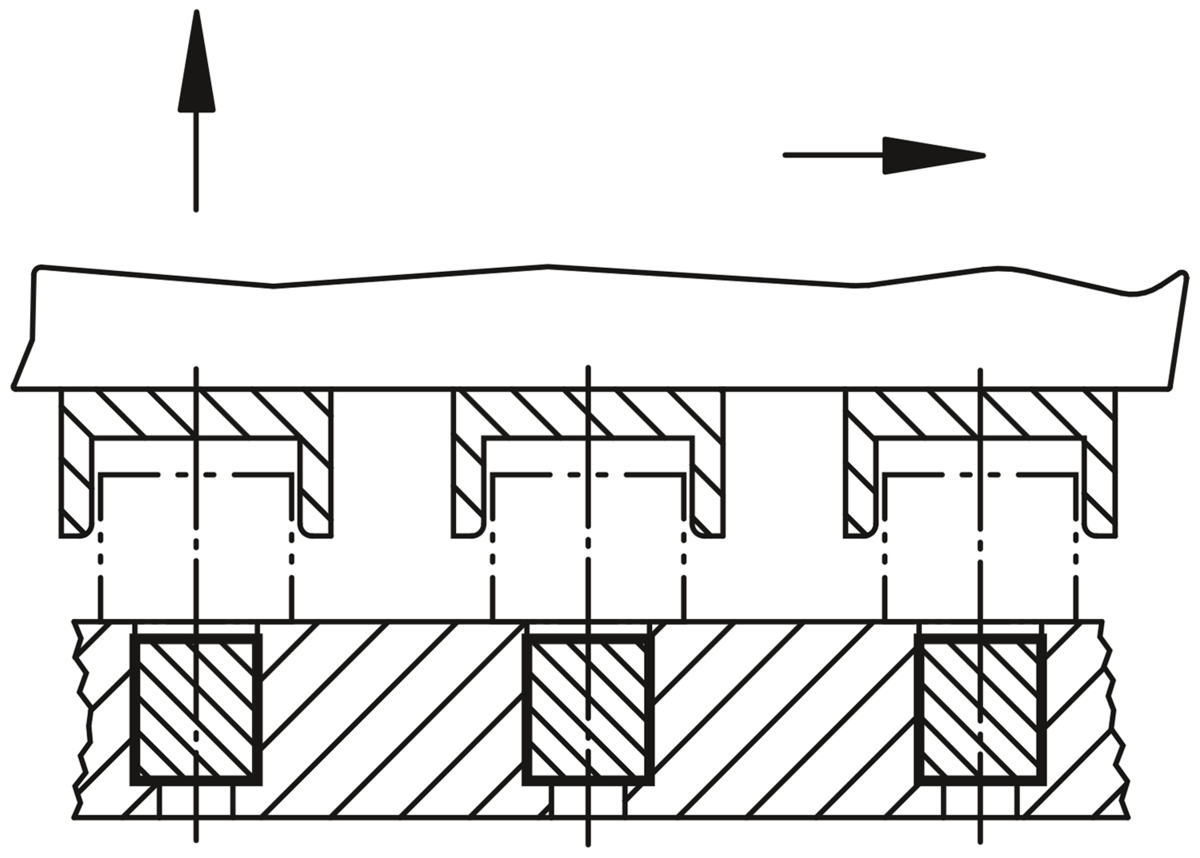

Version:Housing bright.Note:Shielded system. Diameter “D” ground to a h6 tolerance. Fastening possibilities by pressing, shrink-fit or gluing.
Deep pot magnets can be shortened by the dimension “H1” with no loss of attracting force.
Temperature range:max. 450°C.Drawing reference:
1) magnetic face
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0545 Magnets deep pot AlNiCo with fitting tolerance 176 kB

Drawings

Magnets deep pot AlNiCo with fitting tolerance

Item selection/filter

Item No.

DHH1Magnetic
force N
CADAcc.PriceOrder
K0545.0161021,5 4.32 $ (USD)
K0545.0281233,5 4.73 $ (USD)
K0545.03101667 5.01 $ (USD)
K0545.041318710 5.67 $ (USD)
K0545.051620518 7.22 $ (USD)
K0545.062025642 9.66 $ (USD)
K0545.072530596 17.04 $ (USD)
K0545.0832353180 28.44 $ (USD)
K0545.0940455240 62.16 $ (USD)
K0545.1050502420 121.01 $ (USD)
