Magnets deep pot AlNiCo without fitting tolerance
K0546

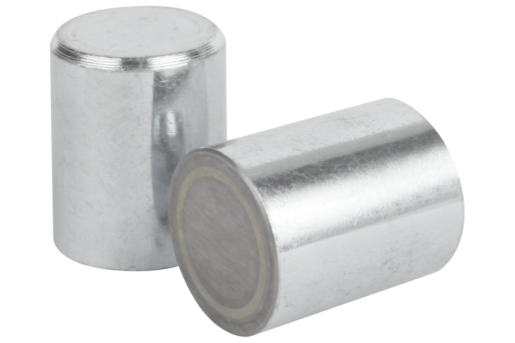

Magnets deep pot AlNiCo without fitting tolerance

go back

Item description/product images

DescriptionMaterial:Housing, steel.
Magnetic core AlNiCo.
Version:Housing, electro zinc-plated.Note:Shielded system. Diameter "D" without fitting tolerance. Fastening possibilities are press-in, shrink-fitting or gluing.
Deep pot magnets can be shortened by the dimension "H1" with no loss of magnetic force.
Temperature range:max. 450°C.Drawing reference:
1) magnetic face
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0546 Magnets deep pot AlNiCo without fitting tolerance 122 kB

Drawings

Magnets deep pot AlNiCo without fitting tolerance

Item selection/filter

Item No.

DHH1Magnetic
force
N
CADAcc.PriceOrder
K0546.01620121,5 5.10 $ (USD)
K0546.02820113,5 5.60 $ (USD)
K0546.031020107 6.24 $ (USD)
K0546.041320910 6.92 $ (USD)
K0546.051620518 8.51 $ (USD)
K0546.062025642 10.98 $ (USD)
K0546.0725351096 18.62 $ (USD)
K0546.0832408180 36.38 $ (USD)
K0546.09405010240 74.69 $ (USD)
