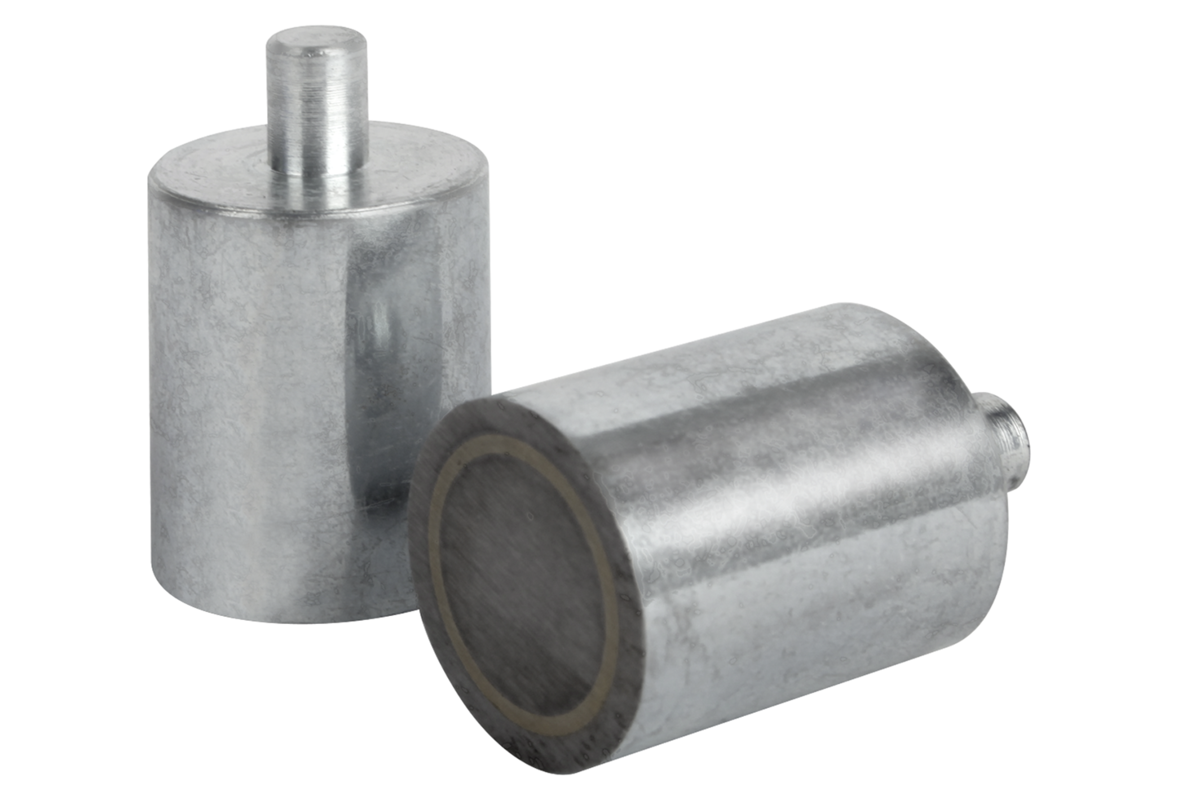

DescriptionMaterial:Housing, steel. Magnetic core AlNiCo.Version:Housing, electro zinc-plated.Note:Deep pot magnets with smooth pin, shielded system. The magnets can be shortened by the dimension “H1” with no loss of magnetic force.Temperature range:max. 450°C.Drawing reference:
1) magnetic face
Special features:
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
