Product groups
Magnets shallow pot hard ferrite
K0548

Magnets shallow pot hard ferrite

go back

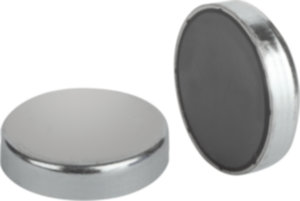

Item description/product images

DescriptionMaterial:Housing, steel.
Magnetic core hard ferrite.
Version:Housing, electro zinc-plated.Note:Shallow pot magnets without threaded bushing. These magnets are pressed or glued into the receiving holes.

Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=80 version. They do not impair the attracting function of the magnets in any way.
Temperature range:max. 200°C.Drawing reference:
1) magnetic face
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0548 Magnets shallow pot hard ferrite 140 kB

Drawings

Magnets shallow pot hard ferrite

Item selection/filter

Item No.

DHMagnetic
force N
CADAcc.PriceOrder
K0548.0110 ±0,154,54 1.94 $ (USD)
K0548.0213 ±0,154,510 2.15 $ (USD)
K0548.0316 ±0,154,518 2.57 $ (USD)
K0548.0420 ±0,15630 3.08 $ (USD)
K0548.0525 ±0,15740 3.39 $ (USD)
K0548.0632 ±0,20780 3.63 $ (USD)
K0548.0740 ±0,208125 4.94 $ (USD)
K0548.0850 ±0,2010220 6.24 $ (USD)
K0548.0963 ±0,2014350 10.89 $ (USD)
K0548.1080 ±0,2518600 21.47 $ (USD)
