Product groups
Magnets shallow pot with thread  hard ferrite
K0549

Magnets shallow pot with thread hard ferrite

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Housing, steel.
Magnetic core hard ferrite.
Version:Housing, electro zinc-plated.Note:Shallow pot magnets, shielded system.

Hairline cracks in the magnetic material are unavoidable for technical reasons in D=80, D=100 and D=125 versions. They do not impair the attracting function of the magnets in any way.
Temperature range:max. 200°C.Drawing reference:
1) magnetic face
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0549 Magnets shallow pot with thread  hard ferrite 188 kB

Drawings (total overview)

Magnets shallow pot with thread  hard ferrite

Magnets shallow pot with external thread, hard ferrite, style A

More information

Drawings

Magnets shallow pot with external thread, hard ferrite, style A

Item selection/filter

Item No.StyleD

D2LHH1Magnetic
force N
CADAcc.PriceOrder
K0549.21A10 ±0,15M374,511,54on request
K0549.22A13 ±0,15M374,511,510on request
K0549.23A16 ±0,15M374,511,518on request
K0549.24A20 ±0,15M3761330on request
K0549.25A25 ±0,15M4871540on request
K0549.26A32 ±0,20M4871580on request

Magnets shallow pot with internal thread, hard ferrite, style B

More information

Drawings

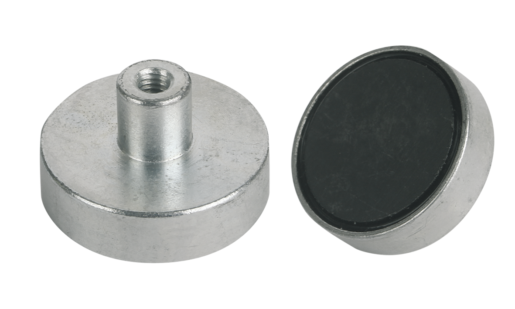

Magnets shallow pot with internal thread, hard ferrite, style B

Item selection/filter

Item No.StyleD

D1D2LHH1TMagnetic
force N
CADAcc.PriceOrder
K0549.01B10 ±0,156M374,511,554on request
K0549.02B13 ±0,156M374,511,5510on request
K0549.03B16 ±0,156M374,511,5518on request
K0549.04B20 ±0,156M37613530on request
K0549.05B25 ±0,158M48715640on request
K0549.06B32 ±0,208M48715680on request
K0549.07B40 ±0,2010M5108188125on request
K0549.08B50 ±0,2012M612102210220on request
K0549.09B63 ±0,2015M816143014350on request
K0549.10B80 ±0,2520M1016183414600on request
K0549.11B99 ±0,2522M1220224217900on request
K0549.12B125 ±0,2525M14242650201300on request
