Magnets shallow pot SmCo

K0550

Magnets shallow pot SmCo

Products
- Magnets
  - Magnets shallow pot SmCo

Item description/product images

Show/filter all items

DescriptionMaterial:Housing, steel.
Magnetic core, SmCo.Version:Housing, electro zinc-plated.Note:Shallow pot magnets, shielded system. Magnets with an SmCo core have three to five times the attracting force of AlNiCo or hard ferrite magnets.Temperature range:max. 200°C.Drawing reference:

1) magnetic face

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0550 Magnets shallow pot SmCo

Drawings (total overview)

Magnets shallow pot SmCo

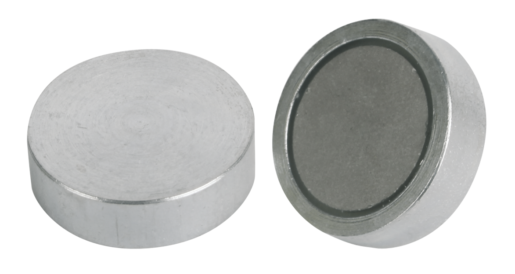

Magnets shallow pot SmCo, style A

More information

Drawings

Magnets shallow pot SmCo, style A

Item selection/filter

Item No.	Style	D	H	Magnetic force N	CAD	Acc.	Price	Order
K0550.01	A	6 ±0,15	4,5	5			on request
K0550.02	A	8 ±0,15	4,5	11			on request
K0550.03	A	10 ±0,15	4,5	20			on request
K0550.04	A	13 ±0,15	4,5	40			on request
K0550.05	A	16 ±0,15	4,5	60			on request
K0550.06	A	20 ±0,15	6	90			on request
K0550.07	A	25 ±0,15	7	150			on request
K0550.08	A	32 ±0,20	7	220			on request

Magnets shallow pot, SmCo, style B

More information

Drawings

Magnets shallow pot, SmCo, style B

Item selection/filter

Item No.	Style	D	D1	D2	H	H1	T	Magnetic force N	CAD	Acc.	Price	Order
K0550.11	B	6 ±0,15	6	M3	4,5	11,5	11,5	5			on request
K0550.12	B	8 ±0,15	6	M3	4,5	11,5	11,5	11			on request
K0550.13	B	10 ±0,15	6	M3	4,5	11,5	11,5	20			on request
K0550.14	B	13 ±0,15	6	M3	4,5	11,5	11,5	40			on request
K0550.15	B	16 ±0,15	6	M4	4,5	11,5	11,5	60			on request
K0550.16	B	20 ±0,15	8	M4	6	13	13	90			on request
K0550.17	B	25 ±0,15	8	M4	7	14	14	150			on request
K0550.18	B	32 ±0,20	10	M5	7	15,5	15,5	220			on request
