Magnets deep pot SmCo
K0551

Magnets deep pot SmCo

go back

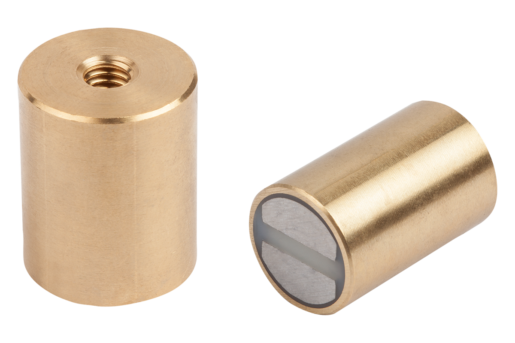

Item description/product images

DescriptionMaterial:Housing brass.
Magnetic core SmCo.
Note:Smooth design, shielded system. Diameter “D” ground with h6 tolerance. Under no circumstances may SmCo magnets be pressed directly into iron, as otherwise loss of attractive force due to magnetic short circuits occurs. SmCo magnets are especially suitable for direct use in spot-welding machines, as no demagnetisation occurs.
Deep pot magnets can be shortened by the dimension “H1” with no loss of attractive force.
Temperature range:max. 200°C.Drawing reference:
1) magnetic face
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0551 Magnets deep pot SmCo 154 kB

Drawings

Magnets deep pot SmCo

Item selection/filter

Item No.StyleDH1HTMagnetic
force N
Distance
to iron
wall/mm
CADAcc.PriceOrder
K0551.01A61020-81,5on request
K0551.03A81020-221,5on request
K0551.05A10820-402on request
K0551.07A13620-602,5on request
K0551.09A16220-1253on request
K0551.11A20525-2504on request
K0551.13A25735-4005on request
K0551.15A324,540-6006on request
