Product groups
Magnets shallow pot NdFeB
K0553

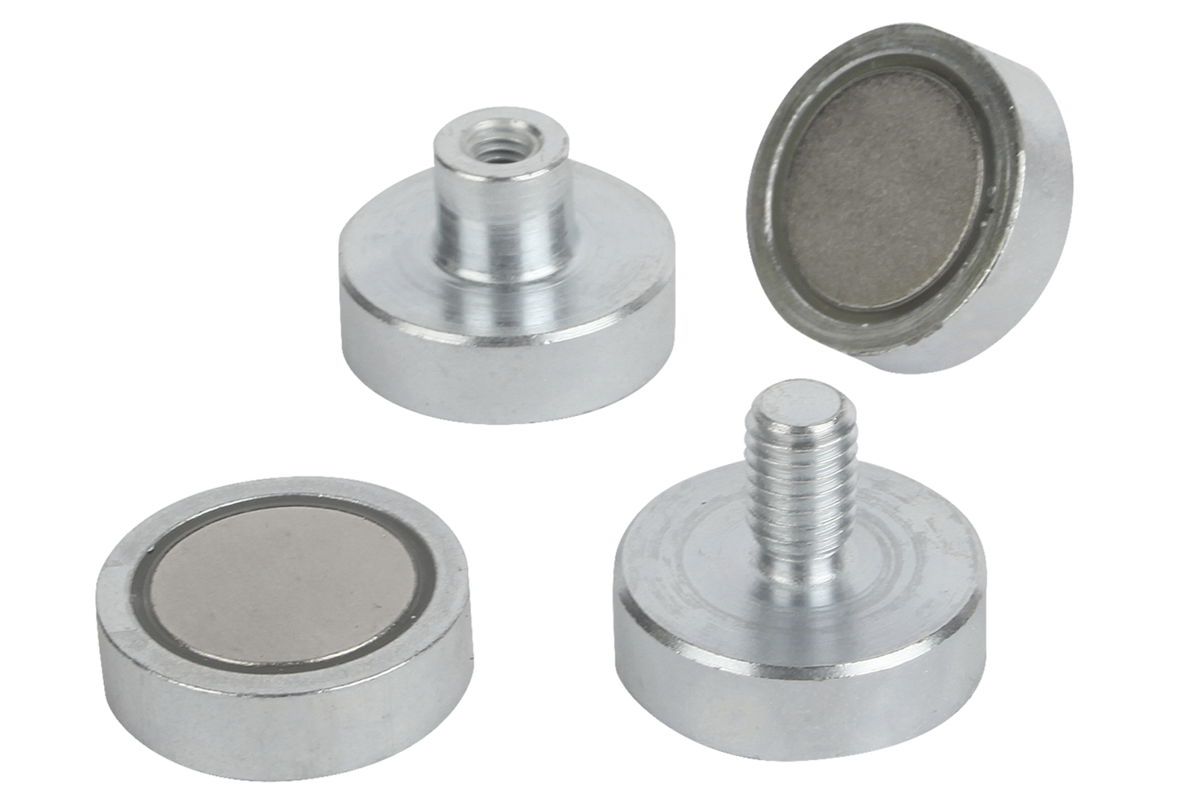

Magnets shallow pot NdFeB

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Housing, steel.
Magnetic core NdFeB.
Version:Housing, electro zinc-plated.Note:Shielded system. With the permanent magnetic material NdFeB the attracive force increases by ca. 10-20% compared with SmCo. Temperature range:max. 80°C.Drawing reference:
1) magnetic face
RoHS
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0553 Magnets shallow pot NdFeB 148 kB

Drawings (total overview)

Magnets shallow pot NdFeB

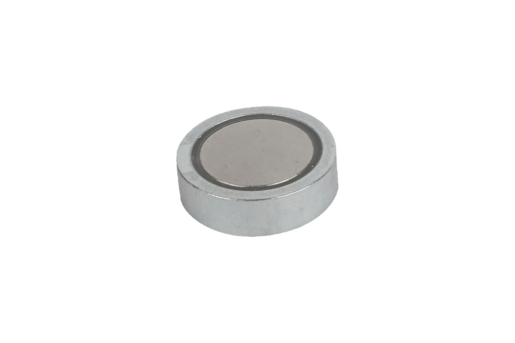

Magnets shallow pot, NdFeB, style A

More information

Drawings

Magnets shallow pot, NdFeB, style A

Item selection/filter

Item No.

StyleDHMagnetic force
N
CADAcc.PriceOrder
K0553.01A6 ±0,154,55on request
K0553.02A8 ±0,154,513on request
K0553.03A10 ±0,154,525on request
K0553.04A13 ±0,154,560on request
K0553.05A16 ±0,154,595on request
K0553.06A20 ±0,156140on request
K0553.07A25 ±0,157200on request
K0553.08A32 ±0,207350on request

Magnets shallow pot, NdFeB, style B

More information

Drawings

Magnets shallow pot, NdFeB, style B

Item selection/filter

Item No.StyleDD1D2HH1TMagnetic force
N
CADAcc.PriceOrder
K0553.11B6 ±0,156M34,511,565on request
K0553.12B8 ±0,156M34,511,5713on request
K0553.13B10 ±0,156M34,511,5725on request
K0553.14B13 ±0,156M34,511,5660on request
K0553.15B16 ±0,156M44,511,5795on request
K0553.16B20 ±0,158M46139140on request
K0553.17B25 ±0,158M47149200on request
K0553.18B32 ±0,2010M5715,510350on request
K0553.19B40 ±0,210M681813670on request
K0553.20B47 ±0,212M69,220,513750on request
K0553.21B50 ±0,215M81022131000on request

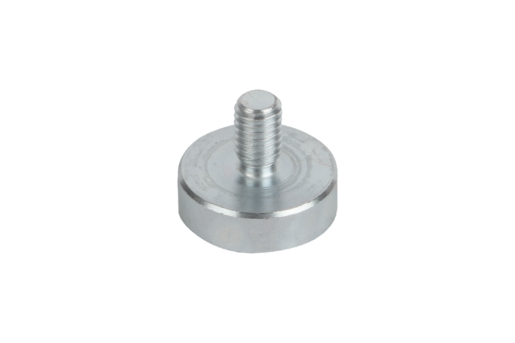

Magnets shallow pot, NdFeB, style C

More information

Drawings

Magnets shallow pot, NdFeB, style C

Item selection/filter

Item No.StyleDD3HH1LMagnetic force
N
CADAcc.PriceOrder
K0553.23C10 ±0,15M34,511,5725on request
K0553.24C13 ±0,15M54,512,5860on request
K0553.25C16 ±0,15M64,512,5895on request
K0553.26C20 ±0,15M661610140on request
K0553.27C25 ±0,15M671710200on request
K0553.28C32 ±0,20M671710350on request
K0553.29C40 ±0,2M882012670on request
K0553.30C47 ±0,2M89,222,213790on request
