K0554

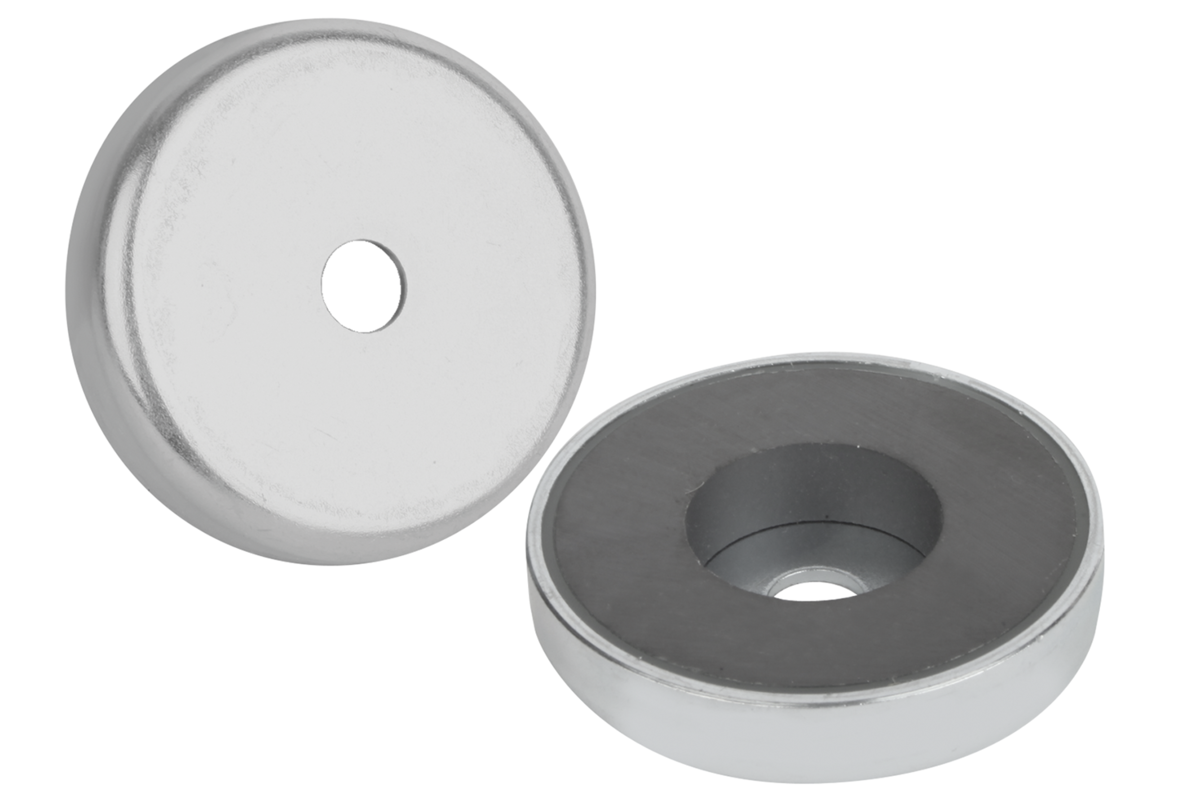

Magnets shallow pot with counterbore hard ferrite

go back

Products
- Magnets
  - Magnets shallow pot with counterbore hard ferrite

Item description/product images

DescriptionMaterial:Housing, steel.
Magnetic core hard ferrite.Version:Housing, electro zinc-plated.Note:Shielded system.Temperature range:max. 200°C.Drawing reference:

1) magnetic face

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0554 Magnets shallow pot with counterbore hard ferrite

117 kB

Drawings

Item selection/filter

Item No.	D	D1	D2	H	Magnetic force N	Price
K0554.50	50 ±0,20	8,5	22	10	180	8.04 $ (USD)
K0554.63	63 ±0,20	6,5	24	14	290	14.28 $ (USD)
K0554.80	80 ±0,25	6,5	11,5	18	540	27.72 $ (USD)
