K0556

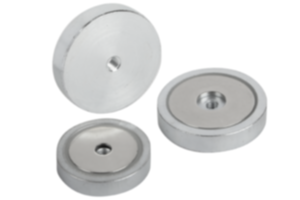

Magnets shallow pot with internal thread NdFeB

go back

Products
- Magnets
  - Magnets shallow pot with internal thread NdFeB

Item description/product images

DescriptionMaterial:Housing, steel.
Magnetic core NdFeB.Version:Housing, electro zinc-plated.Note:Shielded systemTemperature range:max. 80°C.Drawing reference:

1) magnetic face

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0556 Magnets shallow pot with internal thread NdFeB

148 kB

Drawings

Item selection/filter

Item No.	D	D1	D2	H	Magnetic force N	Price
K0556.01	32	M5	5,5	7	330	22.53 $ (USD)
K0556.02	40	M5	10,5	8	550	31.26 $ (USD)
K0556.03	63	M10	11,7	14	1100	123.99 $ (USD)
K0556.04	75	M10	13	15	1750	173.18 $ (USD)
