Magnets deep pot
K0557

Magnets deep pot

go back

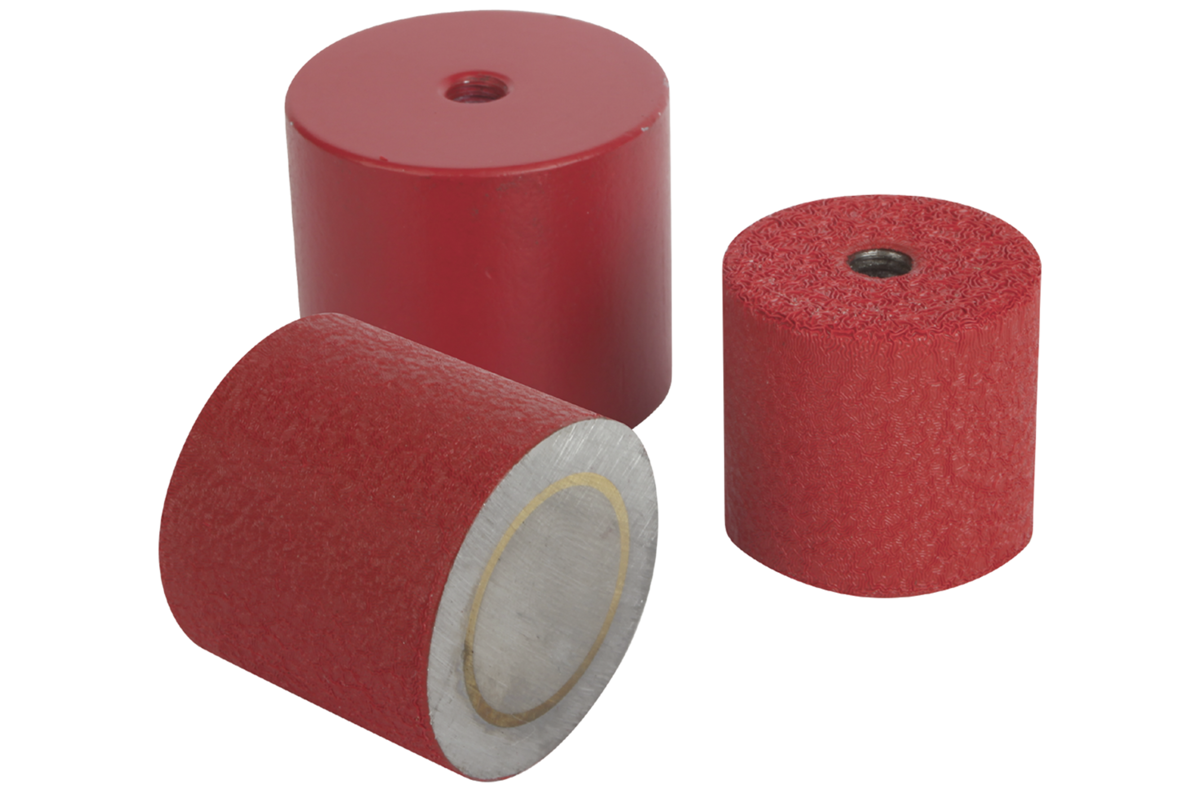

Item description/product images

DescriptionMaterial:Housing, steel.
Magnetic core AlNiCo.
Version:Housing painted red.Note:Hard magnet in aluminum housing and steel jacket. Shielded system. Pot magnets are used for retaining, lifting and mounting in fixtures.
Due to the painted surface, the diameter D can be up to +0.8 mm.
Temperature range:max. 450°C.Drawing reference:
1) magnetic face
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0557 Magnets deep pot 166 kB

Drawings

Magnets deep pot

Item selection/filter

Item No.

DD1HTMagnetic
force
N
CADAcc.PriceOrder
K0557.0117M616418 6.02 $ (USD)
K0557.0221M619528 6.44 $ (USD)
K0557.0327M625665 9.71 $ (USD)
K0557.0435M6309115 17.54 $ (USD)
K0557.0565M124313400 71.81 $ (USD)
