Product groups
Magnets strong
K0560

Magnets strong

go back

Item description/product images

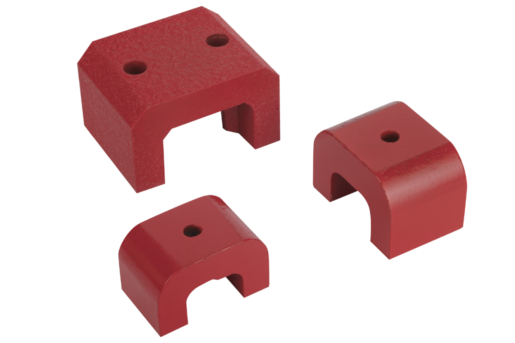

DescriptionMaterial:Magnetic core AlNiCo.Version:painted red.Note:Horseshoe magnets with high attractive force. Non-shielded system. The magnets are supplied with a electro zinc-plated protective plate and are used for holding, sorting and lifting.
Sizes 1, 2 and 3 have only one attachment hole in the center.
Temperature range:max. 450°C.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0560 Magnets strong 124 kB

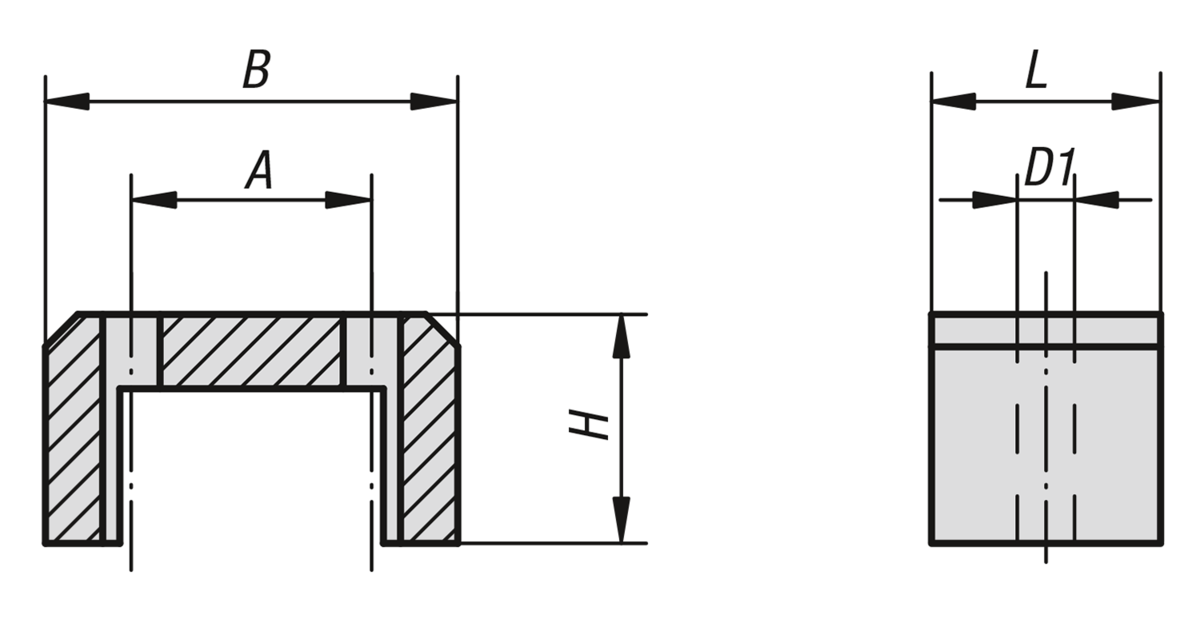

Drawings

Magnets strong

Item selection/filter

Item No.

SizeABD1HLMagnetic
force N
CADAcc.PriceOrder
K0560.011-305202045 13.81 $ (USD)
K0560.022-405252590 25.58 $ (USD)
K0560.033-4553029120 35.12 $ (USD)
K0560.044325783545230 82.30 $ (USD)
K0560.055387084157320 120.67 $ (USD)
