Magnets raw, NdFeB, block style

K1406

Magnets raw, NdFeB, block style

Products
- Magnets
  - Magnets raw, NdFeB, block style

Item description/product images

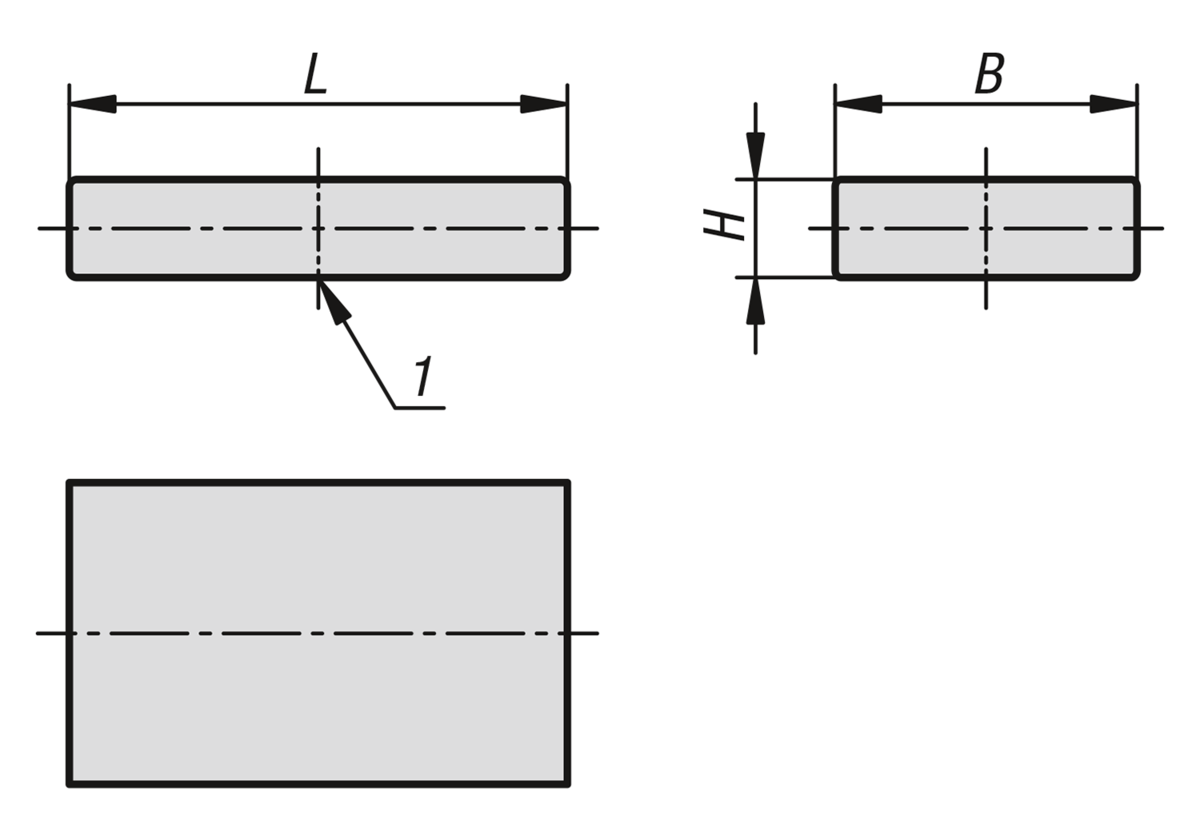

DescriptionMaterial:NdFeB N35 (neodymium).Version:nickel-plated.Note:Unshielded system.Temperature range:max. 80°C.Assembly:The magnets can be mounted by press-fit or gluing.Drawing reference:

1) magnetic face

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1406 Magnets raw, NdFeB, block style

Drawings

Magnets raw, NdFeB, block style

Item selection/filter

Order No.	B	H	L	Magnetic force N	CAD	Acc.	Price	Order
K1406.0704	4 ±0,1	1,5 ±0,1	7,5 ±0,1	5			1.41 $ (USD)
K1406.0706	6 ±0,1	2 ±0,1	7,5 ±0,1	8			1.71 $ (USD)
K1406.1007	7,5 ±0,1	2 ±0,1	10 ±0,1	11			2.46 $ (USD)
K1406.1209	9,5 ±0,1	2,5 ±0,1	12 ±0,1	17			3.52 $ (USD)
K1406.1612	12,5 ±0,1	2,5 ±0,1	16 ±0,1	24			4.91 $ (USD)
K1406.1816	16,5 ±0,1	4 ±0,1	18 ±0,1	50			9.02 $ (USD)
K1406.2620	20,3 ±0,1	5 ±0,1	26 ±0,1	77			19.44 $ (USD)
K1406.3326	26 ±0,1	6,5 ±0,1	33 ±0,1	125			23.81 $ (USD)
