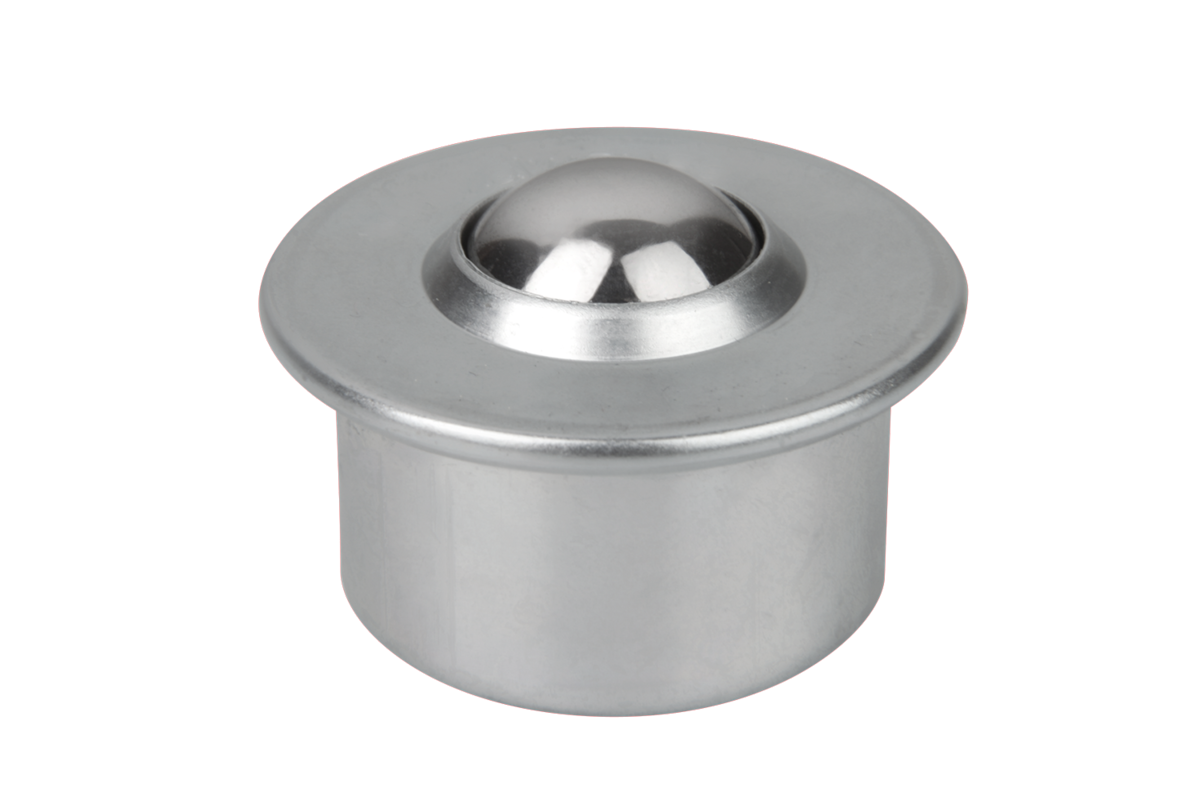

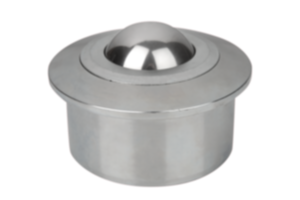

Ball transfer units with steel housing

go back

Products
- Material handling
  - Ball transfer units
    - Ball transfer units with steel housing

Item description/product images

DescriptionMaterial:Electro zinc-plated steel or stainless steel.Note:Ball transfer units with steel housing have a felt seal to protect against dirt.Drawing reference:

1) load ball
2) bearing balls

style B: cap and housing electro zinc-plated, balls steel
style C: cap and housing electro zinc-plated, balls stainless steel
style D: cap, housing and balls stainless steel

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0760 Ball transfer units with steel housing

217 kB

Drawings

Item selection/filter

Order No.	style	DK	D	D1	H	H1	H2	Load rating C (N)	Suitable tolerance ring	Price
K0760.115	B	15,8	24±0,065	31	21	9,5	2,8	600	K0766.024	11.33 $ (USD)
K0760.122	B	22,2	36±0,080	45	30	9,8	2,8	1600	K0766.036	18.06 $ (USD)
K0760.130	B	30	45±0,080	55	37	13,8	4	3000	K0766.045	33.50 $ (USD)
K0760.145	B	44,5	62±0,095	75	53,5	19	4	6100	K0766.062	98.19 $ (USD)
K0760.215	C	15,8	24±0,065	31	21	9,5	2,8	600	K0766.024	23.17 $ (USD)
K0760.222	C	22,2	36±0,080	45	30	9,8	2,8	1600	K0766.036	32.72 $ (USD)
K0760.230	C	30	45±0,080	55	37	13,8	4	3000	K0766.045	54.77 $ (USD)
K0760.245	C	44,5	62±0,095	75	53,5	19	4	6100	K0766.062	184.70 $ (USD)
K0760.315	D	15,8	24±0,065	31	21	9,5	2,8	380	K0766.024	28.85 $ (USD)
K0760.322	D	22,2	36±0,080	45	30	9,8	2,8	1000	K0766.036	42.88 $ (USD)
K0760.330	D	30	45±0,080	55	37	13,8	4	2000	K0766.045	98.19 $ (USD)
