Product groups
Ball transfer unitswith steel housing and plastic ball
K0761

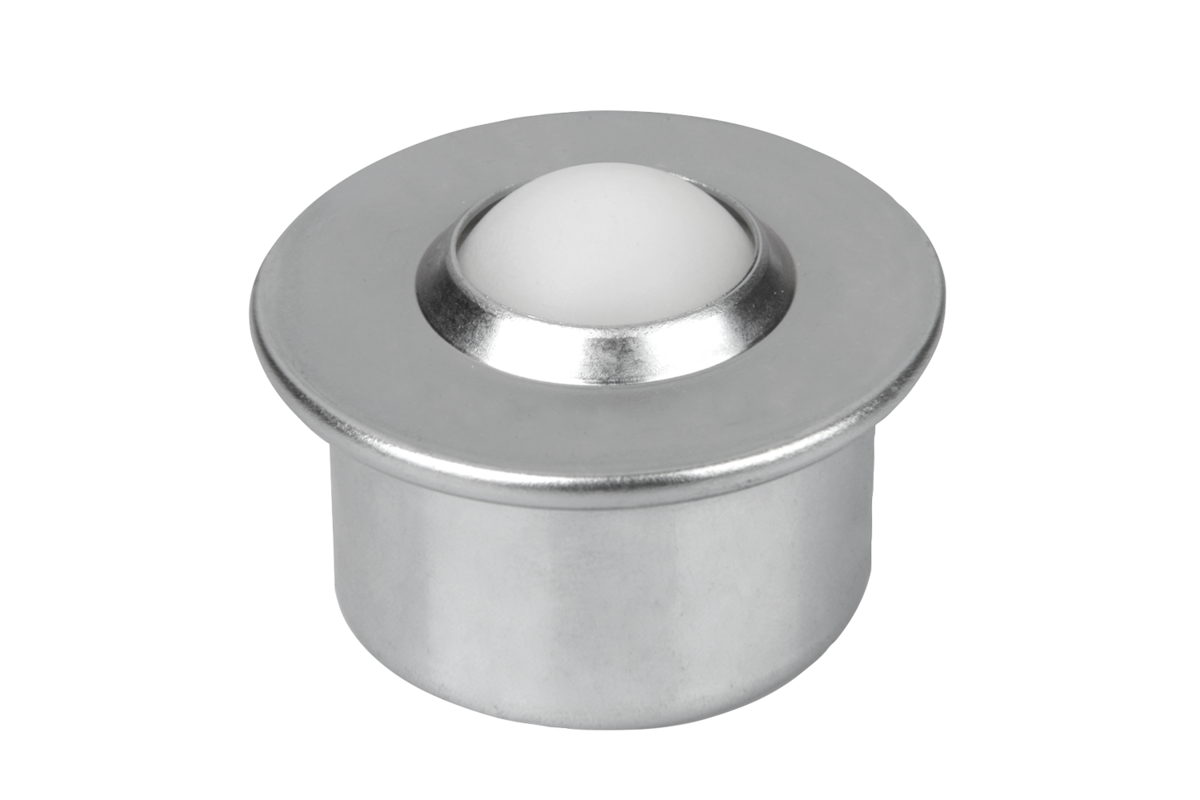

Ball transfer units with steel housing and plastic ball

go back

Item description/product images

DescriptionMaterial:Electro zinc-plated steel.
Polyamid PA 66 ball.
Note:Ball transfer units with plastic balls are particularly suitable for transporting sensitive materials such as polished aluminum, brass and steel sheets or glass.
They have a felt seal to protect against dirt.
Drawing reference:
1) load ball
2) bearing balls

Style B: cap and housing electro zinc-plated, bearing balls steel.
Style C: cap and housing electro zinc-plated, bearing balls stainless steel
RoHS
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0761 Ball transfer unitswith steel housing and plastic ball 217 kB

Drawings

Ball transfer unitswith steel housing and plastic ball

Item selection/filter

Item No.StyleDKDD1HH1H2Load
rating C
(N)
Suitable
tolerance
ring
CADAcc.PriceOrder
K0761.115B15,824±0,06531219,52,8100K0766.024 on request
K0761.122B22,236±0,08045309,62,8200K0766.036 on request
K0761.130B3045±0,080553713,64250K0766.045 on request
K0761.215C15,824±0,06531219,52,8100K0766.024 on request
K0761.222C22,236±0,08045309,62,8200K0766.036 on request
K0761.230C3045±0,080553713,64250K0766.045 on request
