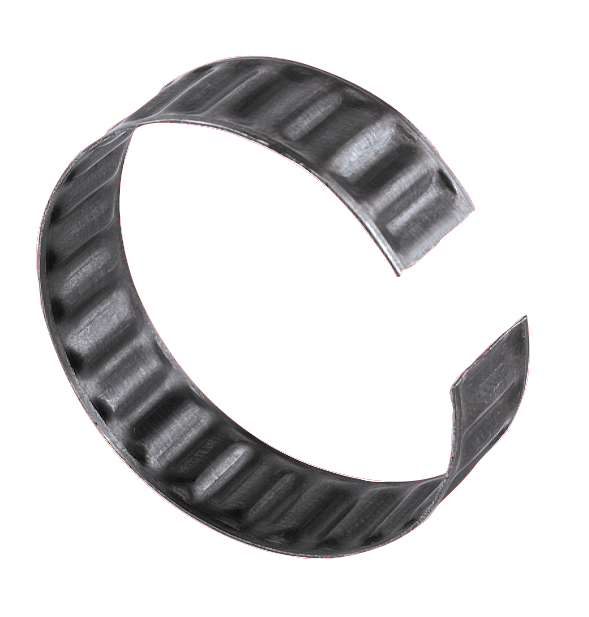

Tolerance rings
 K0766

Tolerance rings

 go back

Item description/product images
DescriptionMaterial:Spring band steelNote:The use of tolerance rings allows for a greater tolerance range between the parts being assemble.
The ball transfer units can be fitted quickly and cost effectively.Drawing reference:
1) tolerance ring
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet K0766 Tolerance rings 149 kB

Drawings

Tolerance rings

Item selection/filter
Item No.

DAssembly dimensions
D1		Assembly dimensions
H		CADAcc.PriceOrder
K0766.0242425,7 +0,27 1.94 $ (USD)
K0766.0363637,7 +0,212 2.85 $ (USD)
K0766.0454546,7 +0,212 3.31 $ (USD)
K0766.0626264,1 +0,315 3.92 $ (USD)
K0766.100100102,5 +0,3519 10.64 $ (USD)
