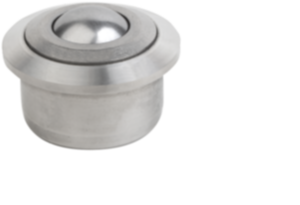

Ball transfer units heavy duty
 K1323

Ball transfer units heavy duty

 go back

Item description/product images
DescriptionMaterial:Balls stainless steel 1.4021 (AISI 420 equivalent).
Housing stainless steel 1.4301 (AISI 304 equivalent).Version:Bright.Note:Solid steel ball transfer units are designed for long life by impact loading.
The unit includes dust seals and self-cleaning apertures.

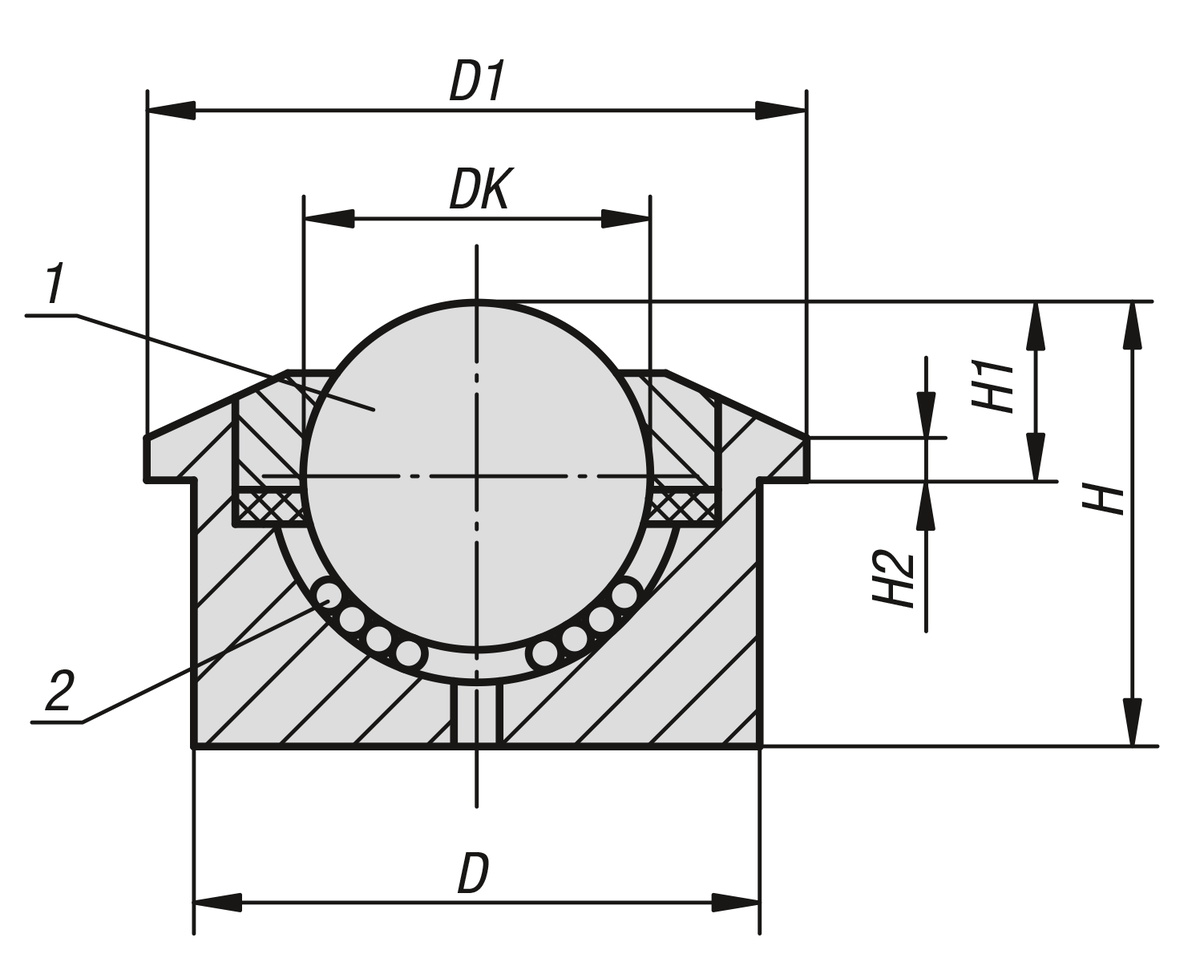

All units are supplied with solid steel housings and hardened surfaces.Drawing reference:
1) load ball
2) bearing balls
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet K1323 Ball transfer units heavy duty 209 kB

Drawings

Ball transfer units heavy duty

Item selection/filter
Order No.DKD1D

HH1H2Load
rating C
(N)		CADAcc.PriceOrder
K1323.32222,24536±0,08030,59,8±0,231200 101.05 $ (USD)
K1323.330305545±0,08036,813,8±0,23,42000 136.17 $ (USD)
