Pull handles, style A

go back

Products
- Pull Handles
  - Aluminum Handles
    - Pull handles
      - Pull handles, style A

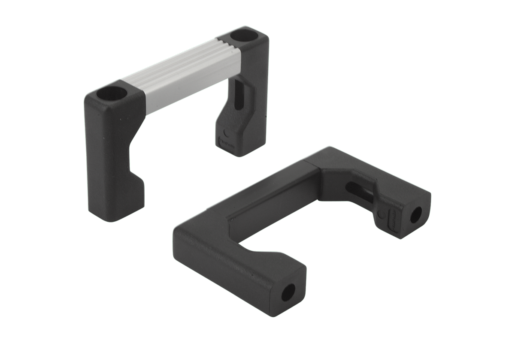

Item description/product images

DescriptionMaterial:Grip aluminum.
Legs glass-bead reinforced polyamide.Version:Grip matt-finished and natural tone or black anodized.
Legs fine structure semi-matt, black.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0216_A Pull handles, style A

150 kB

Drawings

Item selection/filter

Order No.	Style	Main color	A	B	D	H	L	Load capacity N	Price
K0216.05501	A	black	55	12	M5	40	70	1000	14.53 $ (USD)
K0216.08801	A	black	88	12	M5	40	103	1000	15.65 $ (USD)
K0216.10001	A	black	100	12	M5	40	115	1000	16.03 $ (USD)
K0216.12001	A	black	120	12	M5	40	135	1000	16.67 $ (USD)
K0216.18001	A	black	180	12	M5	40	195	1000	18.70 $ (USD)
K0216.23501	A	black	235	12	M5	40	250	1000	20.59 $ (USD)
K0216.05503	A	natural	55	12	M5	40	70	1000	13.70 $ (USD)
K0216.08803	A	natural	88	12	M5	40	103	1000	14.45 $ (USD)
K0216.10003	A	natural	100	12	M5	40	115	1000	14.78 $ (USD)
K0216.12003	A	natural	120	12	M5	40	135	1000	15.25 $ (USD)
K0216.18003	A	natural	180	12	M5	40	195	1000	16.67 $ (USD)
K0216.23503	A	natural	235	12	M5	40	250	1000	18.02 $ (USD)
