Pull handles, style B

go back

Products
- Pull Handles
  - Aluminum Handles
    - Pull handles
      - Pull handles, style B

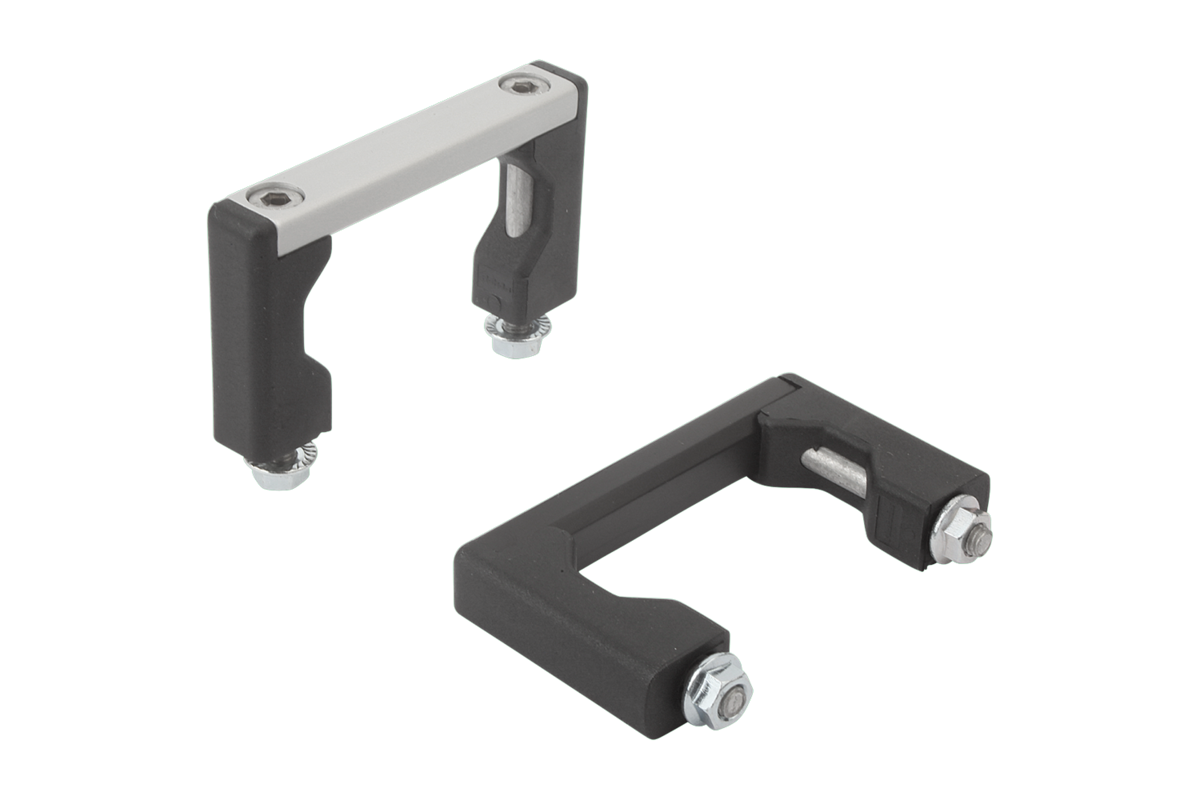

Item description/product images

DescriptionMaterial:Grip aluminum.
Legs glass-bead reinforced polyamide.Version:Grip matt-finished and natural tone or black anodized.
Legs fine structure semi-matt, black.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0216_B Pull handles, style B

142 kB

Drawings

Item selection/filter

Order No.	Style	Main color	A	B	D	H	L	Load capacity N	Price
K0216.055101	B	black	55	12	M5	40	75	1000	22.18 $ (USD)
K0216.088101	B	black	88	12	M5	40	108	1000	23.23 $ (USD)
K0216.100101	B	black	100	12	M5	40	120	1000	23.78 $ (USD)
K0216.120101	B	black	120	12	M5	40	140	1000	24.43 $ (USD)
K0216.180101	B	black	180	12	M5	40	200	1000	26.69 $ (USD)
K0216.235101	B	black	235	12	M5	40	255	1000	28.50 $ (USD)
K0216.055103	B	natural	55	12	M5	40	75	1000	20.86 $ (USD)
K0216.088103	B	natural	88	12	M5	40	108	1000	21.86 $ (USD)
K0216.100103	B	natural	100	12	M5	40	120	1000	22.10 $ (USD)
K0216.120103	B	natural	120	12	M5	40	140	1000	22.83 $ (USD)
K0216.180103	B	natural	180	12	M5	40	200	1000	24.86 $ (USD)
K0216.235103	B	natural	235	12	M5	40	255	1000	26.69 $ (USD)
