Product groups

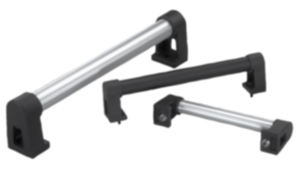

Tubular handles
K0223

Tubular handles

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Grip aluminum EN AW-6060.
Legs glass-bead reinforced polyamide.
Version:Grip natural color anodized or with black serrated plastic cover.Note:The legs have 2 or 4 PVC profile pins in the hole for the grip tube. When pushing the tube in these are trimmed off and produce a precise seating.
Black electro zinc-plated fastening screws, suitable washers and nuts are supplied.
Assembly:From the front.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0223 Tubular handles 171 kB

Drawings (total overview)

Tubular handles

Tubular handles style A

More information

Drawings

Tubular handles style A

Item selection/filter

Item No.Main
color
StyleA

BDHLLoad
capacity
N
CADAcc.PriceOrder
K0223.150203naturalA15032M5x2055,51841000on request
K0223.200203naturalA20032M5x2055,52341000on request
K0223.300203naturalA30032M5x2055,53341000on request
K0223.400203naturalA40032M5x2055,54341000on request
K0223.500203naturalA50032M5x2055,55341000on request
K0223.150202blackA15032M5x2055,51841000on request
K0223.200202blackA20032M5x2055,52341000on request
K0223.300202blackA30032M5x2055,53341000on request
K0223.400202blackA40032M5x2055,54341000on request
K0223.500202blackA50032M5x2055,55341000on request

Tubular handles style B

More information

Drawings

Tubular handles style B

Item selection/filter

Item No.Main
color
StyleA

BDHLLoad
capacity
N
CADAcc.PriceOrder
K0223.150303naturalB15048M8x25802001000on request
K0223.200303naturalB20048M8x25802501000on request
K0223.300303naturalB30048M8x25803501000on request
K0223.400303naturalB40048M8x25804501000on request
K0223.500303naturalB50048M8x25805501000on request
K0223.150302blackB15048M8x25802001000on request
K0223.200302blackB20048M8x25802501000on request
K0223.300302blackB30048M8x25803501000on request
K0223.400302blackB40048M8x25804501000on request
K0223.500302blackB50048M8x25805501000on request
