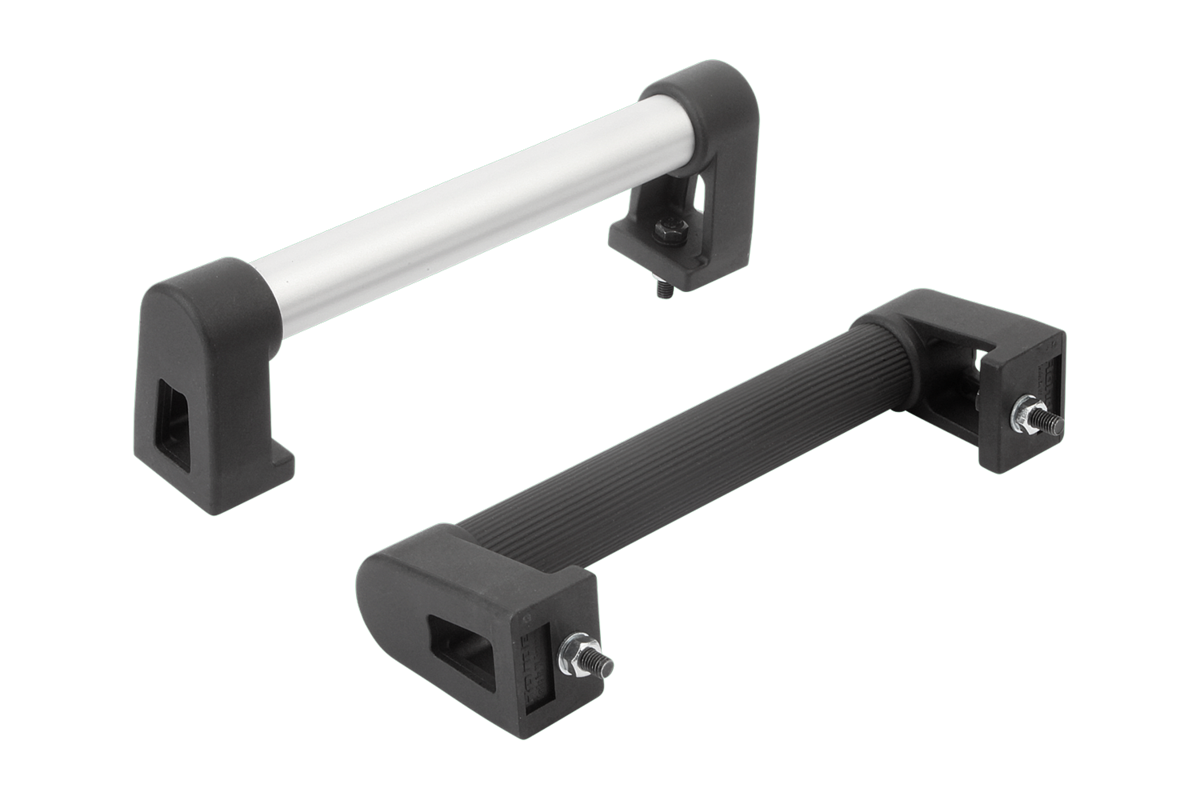

Tubular handles style A

go back

Products
- Pull Handles
  - Aluminum Handles
    - Tubular handles
      - Tubular handles style A

Item description/product images

DescriptionMaterial:Grip aluminum EN AW-6060.
Legs glass-bead reinforced polyamide.Version:Grip natural color anodised or with black serrated plastic cover.Note:The legs have 2 or 4 PVC profile pins in the hole for the grip tube. When pushing the tube in these are trimmed off and produce a precise seating.
Black electro zinc-plated fastening screws, suitable washers and nuts are supplied.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0223_A Tubular handles style A

118 kB

Drawings

Item selection/filter

Order No.	Main color	style	A	B	D	H	L	Load capacity N	Price
K0223.150203	natural	A	150	32	M5x20	55,5	184	1000	23.81 $ (USD)
K0223.200203	natural	A	200	32	M5x20	55,5	234	1000	25.47 $ (USD)
K0223.300203	natural	A	300	32	M5x20	55,5	334	1000	28.91 $ (USD)
K0223.400203	natural	A	400	32	M5x20	55,5	434	1000	32.27 $ (USD)
K0223.500203	natural	A	500	32	M5x20	55,5	534	1000	35.70 $ (USD)
K0223.150202	black	A	150	32	M5x20	55,5	184	1000	28.32 $ (USD)
K0223.200202	black	A	200	32	M5x20	55,5	234	1000	30.29 $ (USD)
K0223.300202	black	A	300	32	M5x20	55,5	334	1000	34.43 $ (USD)
K0223.400202	black	A	400	32	M5x20	55,5	434	1000	38.34 $ (USD)
K0223.500202	black	A	500	32	M5x20	55,5	534	1000	42.53 $ (USD)
