Ledge handles, style A

go back

Products
- Pull Handles
  - Aluminum Handles
    - Ledge handles
      - Ledge handles, style A

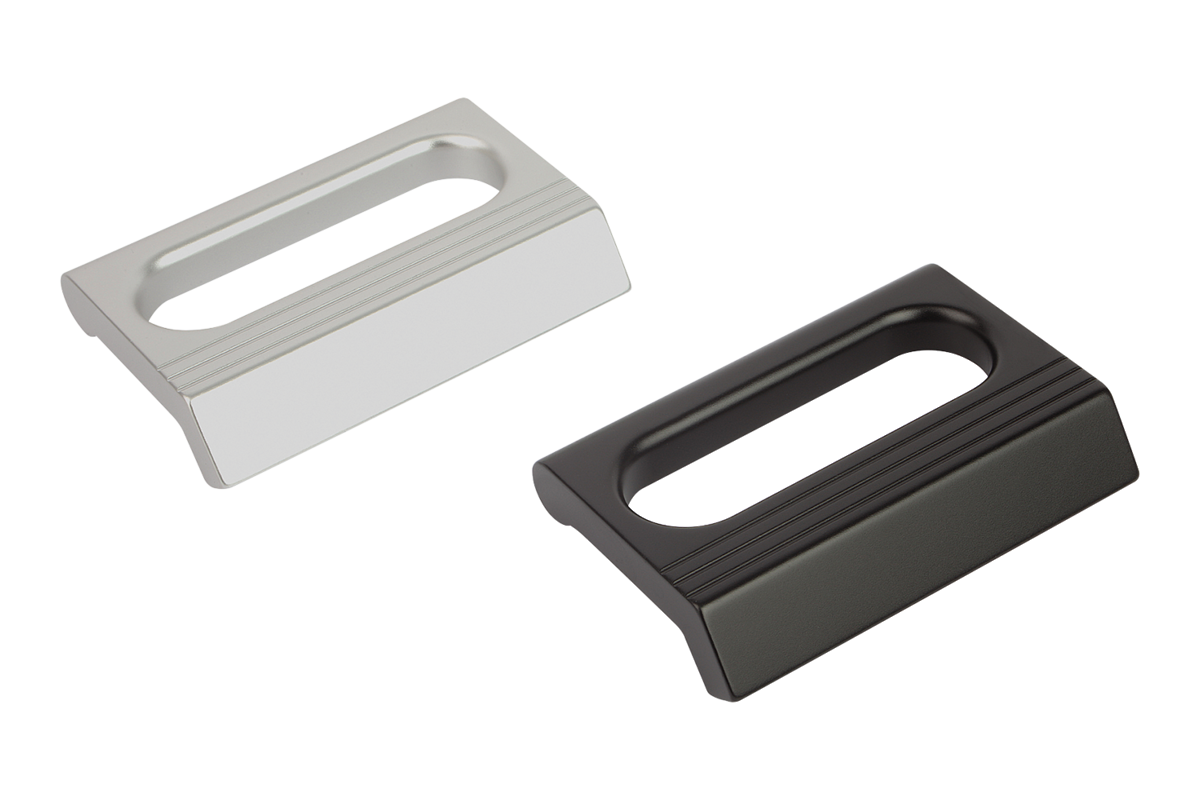

Item description/product images

DescriptionMaterial:Profile aluminum EN AW-6060Version:Matt-gloss anodized.Note:These ledge handles are available with M6 internal thread or with through hole for M5 countersunk screws for front mounting.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0234_A Ledge handles, style A

123 kB

Drawings

Item selection/filter

Item No.	style	Main color	A	D	H	L	T	Load capacity N	Price
K0234.086061	A	black anodized	86	M6	59	106	50	500	63.58 $ (USD)
K0234.100061	A	black anodized	100	M6	59	120	50	500	67.58 $ (USD)
K0234.120061	A	black anodized	120	M6	59	140	50	500	73.20 $ (USD)
K0234.086063	A	natural anodized	86	M6	59	106	50	500	61.23 $ (USD)
K0234.100063	A	natural anodized	100	M6	59	120	50	500	64.98 $ (USD)
K0234.120063	A	natural anodized	120	M6	59	140	50	500	70.29 $ (USD)
