Pull handles recessed, style B
K0238_B

Pull handles recessed, style B

go back

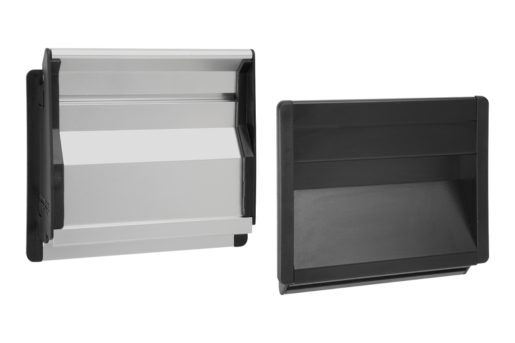

Item description/product images

DescriptionMaterial:Tray handle in aluminum profile, end caps polyamide;
style B: mounting by 2 countersunk screws, steel
Version:Handle glass-bead blasted, satin finish and anodized black or natural color.
Rubber profile black.
Fastening screws electro zinc-plated.
Note:The Tray Handles style B can be mounted from outside with 2 countersunk screws.

Two cross-slots offset by 90° for M4 screws allow earth/ground connection and can serve as a mounting aid for additional add-on parts.
Assembly:After fitting the lower rubber profile, press the two side caps onto the handle. Next press the handle over the lower edge of the mounting cutout at a 45° angle and then push it up against the housing panel.
Now, depending on which type is being used, push the 2nd rubber profile into the upper groove or fix in place with 2 countersunk screws.
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0238_B Pull handles recessed, style B 175 kB

Drawings

Pull handles recessed, style B

Item selection/filter

Item No.Main
color
StyleTypeHLL1TMounting
cutout
Load
capacity
N
CADAcc.PriceOrder
K0238.10021Black anodizedBscrew on9010011519,5104 x 73500on request
K0238.10023natural anodizedBscrew on9010011519,5104 x 73500on request
K0238.11821Black anodizedBscrew on9011813319,5122 x 73500on request
K0238.11823natural anodizedBscrew on9011813319,5122 x 73500on request
K0238.16721Black anodizedBscrew on9016718219,5171 x 73500on request
K0238.16723natural anodizedBscrew on9016718219,5171 x 73500on request
