Pull handles recessed fold-out, style A

Pull handles recessed fold-out, style A

go back

Item description/product images

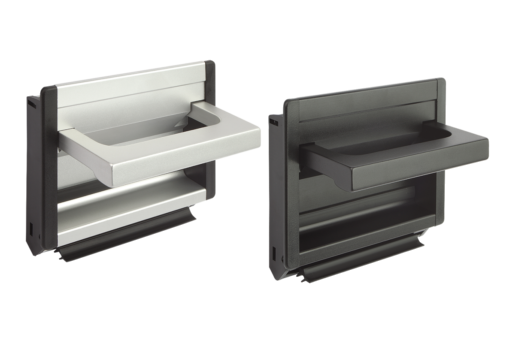

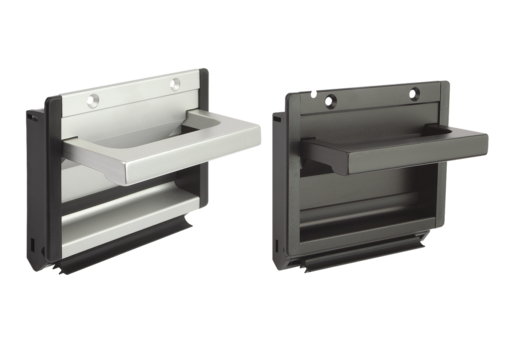

DescriptionMaterial:Tray and folding handle in aluminum profile, end caps polyamide; style A: mounting by rubber insertVersion:Tray and grip glass-bead blasted, satin finish and anodised black or natural color.
Rubber profile black.
Fastening screws electro zinc-plated.
Note:Profile Folding Handles style A can be fitted without screw mounting with 2 soft plastic profiles with sheet strengths of 1-2.5 mm.

Two cross-slots for M4 screws allow earth/ground connection and can serve as a mounting aid for additional add-on parts.
Assembly:After fitting the lower rubber profile, press the two side caps onto the handle. Next press the handle over the lower edge of the mounting cutout at a 45° angle and then push it up against the housing panel.
Now push the 2nd rubber profile into the upper groove or fix in place with 2 countersunk screws.
Special features:
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0239_A Recessed handles fold-down, style A 162 kB


Pull handles recessed fold-out, style A

Item selection/filter

Order No.Main
styleVersion 2HLL1TMounting
K0239.10011black anodizedAplug-in9010011519,5107 x 73500 70.69 $ (USD)
K0239.11811black anodizedAplug-in9011813319,5125 x 73500 74.26 $ (USD)
K0239.16711black anodizedAplug-in9016718219,5174 x 73500 83.87 $ (USD)
K0239.10013natural anodizedAplug-in9010011519,5107 x 73500 68.82 $ (USD)
K0239.11813natural anodizedAplug-in9011813319,5125 x 73500 72.24 $ (USD)
K0239.16713natural anodizedAplug-in9016718219,5174 x 73500 81.47 $ (USD)
