Recessed handles fold-down, style B

Recessed handles fold-down, style B

go back

Item description/product images

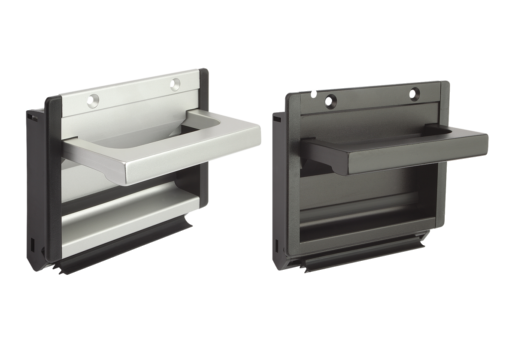

DescriptionMaterial:Tray and folding handle in aluminum profile, end caps polyamide;
style B: mounting by 2 countersunk screws, steel
Version:Tray and grip glass-bead blasted, satin finish and anodised black or natural color.
Rubber profile black.
Fastening screws electro zinc-plated.
Note:Profile Folding Handles style B can be mounted from outside with 2 countersunk screws.

Two cross-slots for M4 screws allow earth/ground connection and can serve as a mounting aid for additional add-on parts.
Assembly:After fitting the lower rubber profile, press the two side caps onto the handle. Next press the handle over the lower edge of the mounting cutout at a 45° angle and then push it up against the housing panel.
Now push the 2nd rubber profile into the upper groove or fix in place with 2 countersunk screws.
Special features:
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0239_B Recessed handles fold-down, style B 171 kB


Recessed handles fold-down, style B

Item selection/filter

Order No.Main
styleVersion 2HLL1TMounting
K0239.10021black anodizedBscrew on9010011519,5107 x 73500 72.83 $ (USD)
K0239.11821black anodizedBscrew on9011813319,5125 x 73500 76.38 $ (USD)
K0239.16721black anodizedBscrew on9016718219,5174 x 73500 86.00 $ (USD)
K0239.10023natural anodizedBscrew on9010011519,5107 x 73500 70.90 $ (USD)
K0239.11823natural anodizedBscrew on9011813319,5125 x 73500 74.26 $ (USD)
K0239.16723natural anodizedBscrew on9016718219,5174 x 73500 83.60 $ (USD)
