Pull Handles stainless steel, three-piece tube design, metric

go back

Products
- Pull Handles
  - Stainless Steel Handles
    - Pull Handles stainless steel, three-piece tube design, metric

Item description/product images

DescriptionMaterial:

Grip and fastening material stainless steel 1.4301 (AISI 304 equivalent).
Legs investment cast G 4581.
Clamping and sealing rings food-grade silicone rubber, long term temperature resistance -60 °C to +200 °C.

Version:Grip finely ground.
Legs blasted and semi-gloss electropolished.Note:General purpose self-assembly stainless steel tubular handles. Splashproof tube/leg connection. Additional tube clamping with socket head grub screws. For mounting from the front or rear. Easy to clean, especially suitable for the foodstuff industry.Assembly:From the front.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0652 Pull Handles stainless steel, three-piece tube design, metric

154 kB

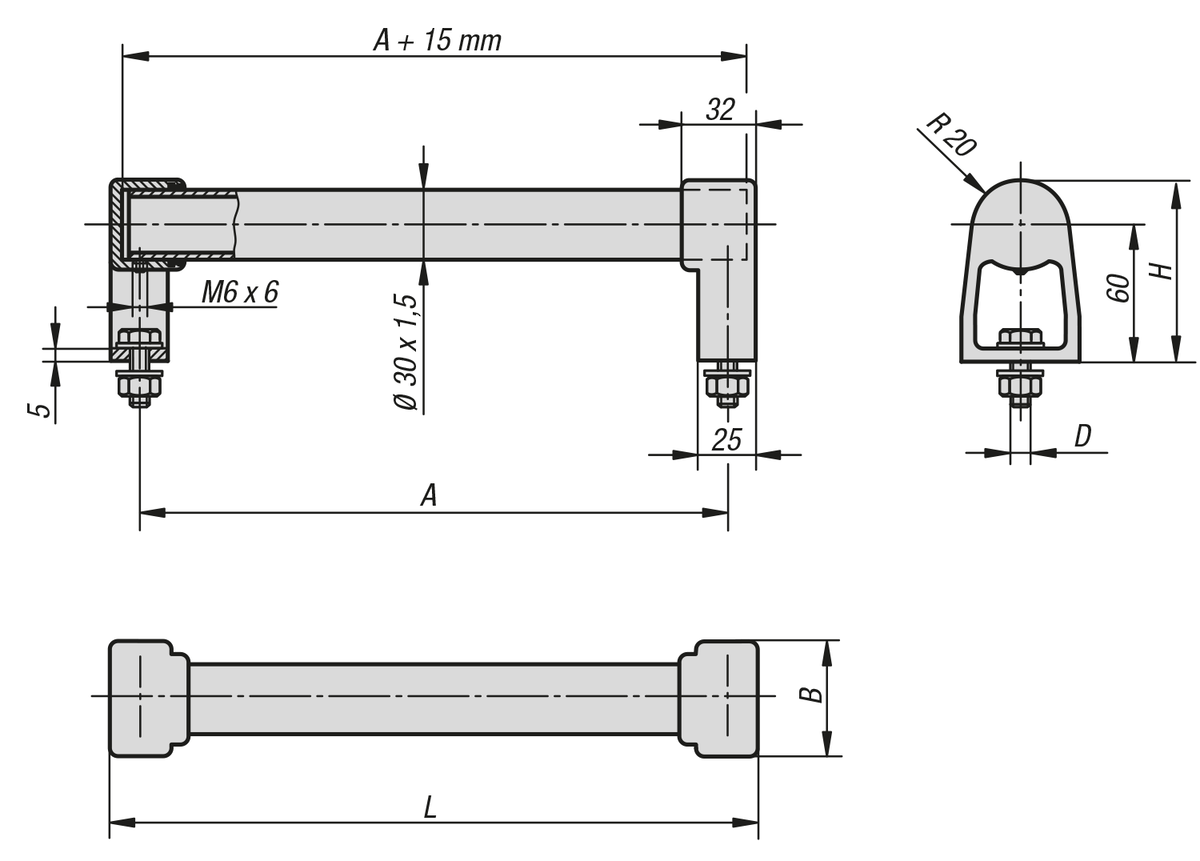

Drawings

Item selection/filter

Item No.	A	B	D	H	L	Load capacity N	Price
K0652.200301	200	48	M8x25	80	225	1000	517.09 $ (USD)
K0652.250301	250	48	M8x25	80	275	1000	522.75 $ (USD)
K0652.300301	300	48	M8x25	80	325	1000	531.33 $ (USD)
K0652.350301	350	48	M8x25	80	375	1000	541.25 $ (USD)
K0652.400301	400	48	M8x25	80	425	1000	550.54 $ (USD)
K0652.500301	500	48	M8x25	80	525	1000	565.54 $ (USD)
