Quarter-turn locks with cylinder, small version
K0520

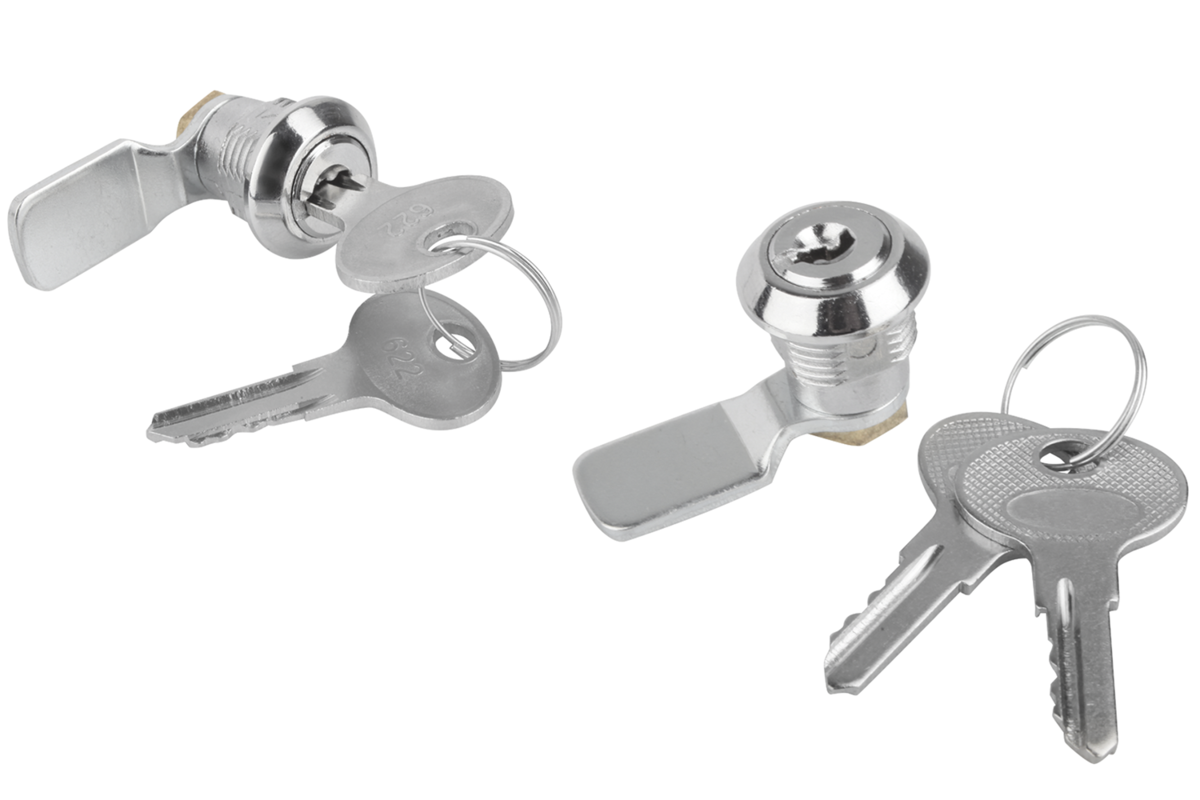

Quarter-turn locks with cylinder, small version

go back

Item description/product images

DescriptionMaterial:Housing and actuator die-cast zinc.
Tongue steel.
Key nickel silver.
Note:Small quarter turn with cylinder, deployable right or left. The lock can be installed pre-assembled. The fastening nut is an earthing nut with teeth one side.
These quarter turns with cylinder are supplied with 2 keys. The key can be removed in both positions (open and closed). All cylinders are identical i.e. all locks can be opened with the same key.

Please order the desired tongue type separately.
On request:Non-identical cylinders.
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0520 Quarter-turn locks with cylinder, small version 95,5 kB

Drawings (total overview)

Quarter-turn locks with cylinder, small version

Quarter-turn locks with cylinder, small version

More information

Drawings

Item selection/filter

Item No.

ActuationHSWCADAcc.PriceOrder
K0520.131Key1320on request

Tongue for quarter-turn lock

More information

Drawings

Tongue for quarter-turn lock

Item selection/filter

Item No.

ALCADAcc.PriceOrder
K0521.128X1051028on request
K0521.124X1351324on request
K0521.131X1351331on request
K0521.136X1351336on request
K0521.130X1651630on request
K0521.126X2052026on request
