DescriptionMaterial:Housing, actuator, nut and cam die-cast zinc. Flat seal rubber.Version:Housing, actuator, nut and cam, chrome-plated.Note:Compression latches with stepped cam are primarily used for doors and housings that require a high pressure on the seal. Right or left deployment. The locking direction is always clockwise. By turning the actuator to the right the door can be pulled incrementally into the frame by up to 9.5 mm at a maximum rotation of 270°.
The fastening nut is an earthing nut with teeth one side.

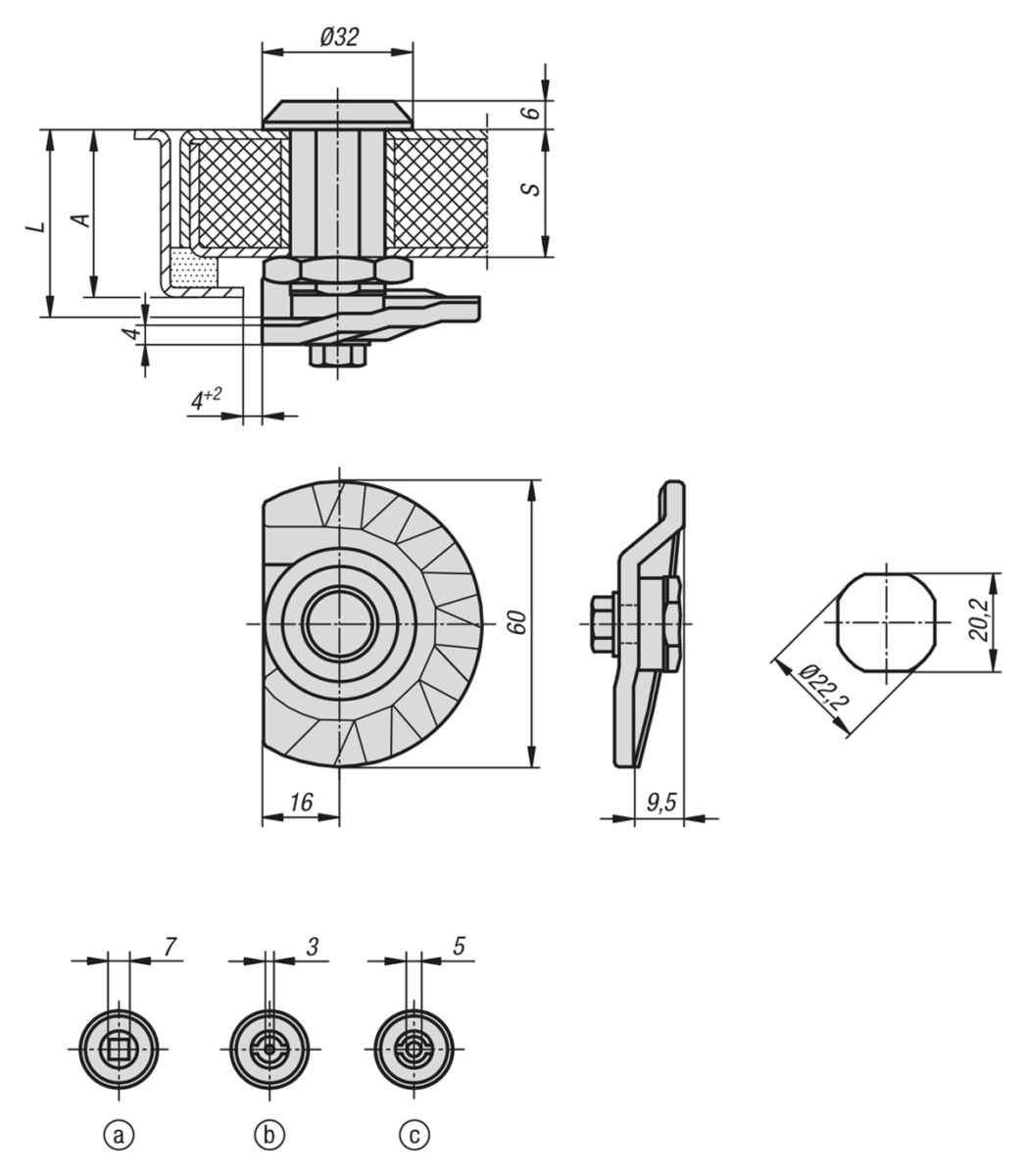

Water and dust tight according to IP65.Accessory:Key K0535Drawing reference:
Actuation: a) square 7 mm b) double lug 3 mm c) double lug 5 mm
1) O-ring 2) Adapter
Special features:
