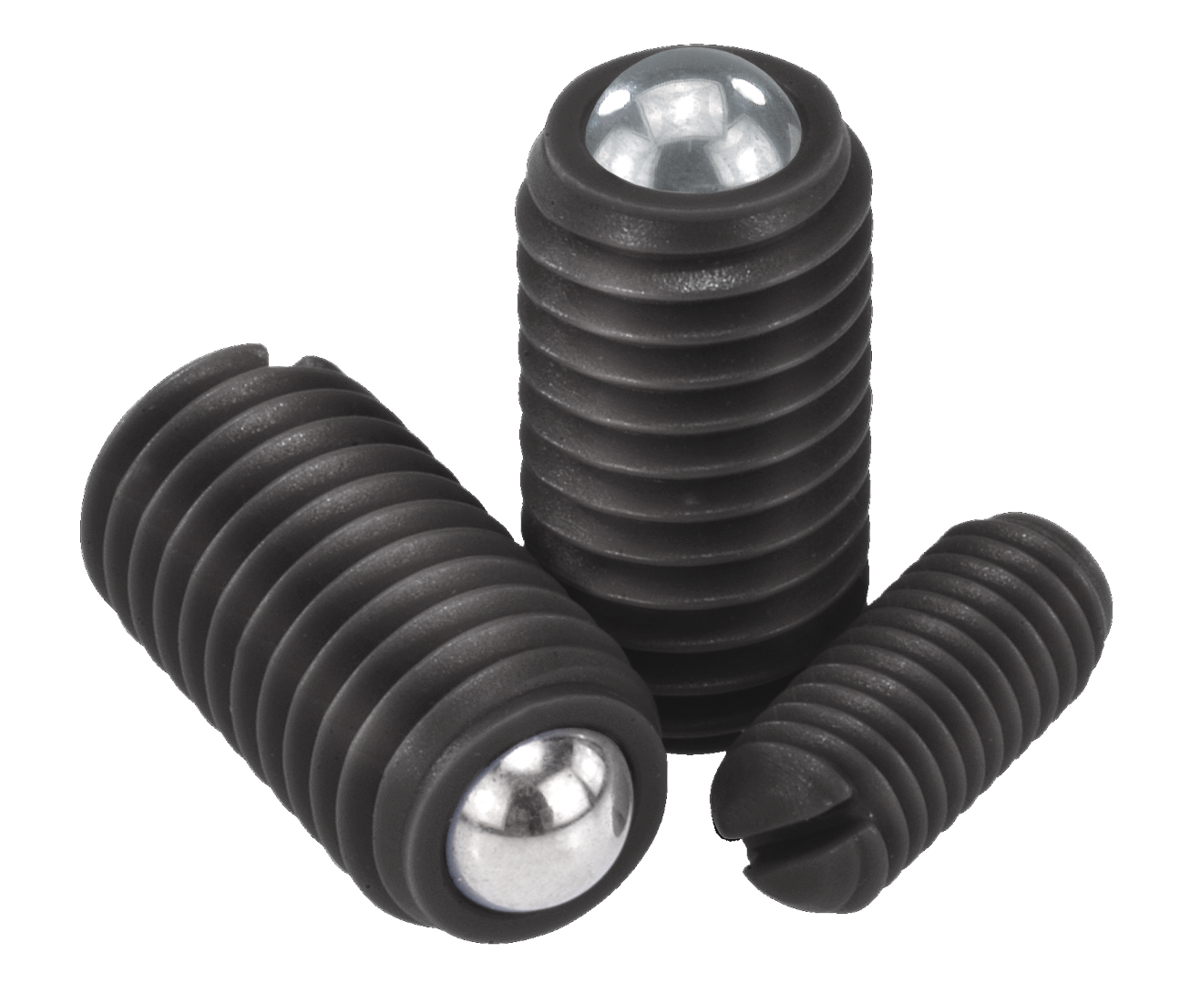

Spring plungers with slot and stainless steel ball, plastic
K0312

Spring plungers with slot and stainless steel ball, plastic

go back

Item description/product images

DescriptionMaterial:body plastic.
Ball 1.4034 (AISI 420 equivalent) stainless steel.
Spring 1.4310 (AISI 301 equivalent).
Version:Ball, hardened.Note:Spring plungers are used for indexing and positioning. They can also be used as ejectors.Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0312 Spring plungers with slot and stainless steel ball, plastic 170 kB

Drawings

Spring plungers with slot and stainless steel ball, plastic

Item selection/filter

Item No.

DD1HLNSpring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0312.06M63,51141913 2.06 $ (USD)
K0312.08M851,5161,21530 2.47 $ (USD)
K0312.10M1062191,62040 2.90 $ (USD)
