Product groups
Spring plungers with head
K0331

Spring plungers with head

go back

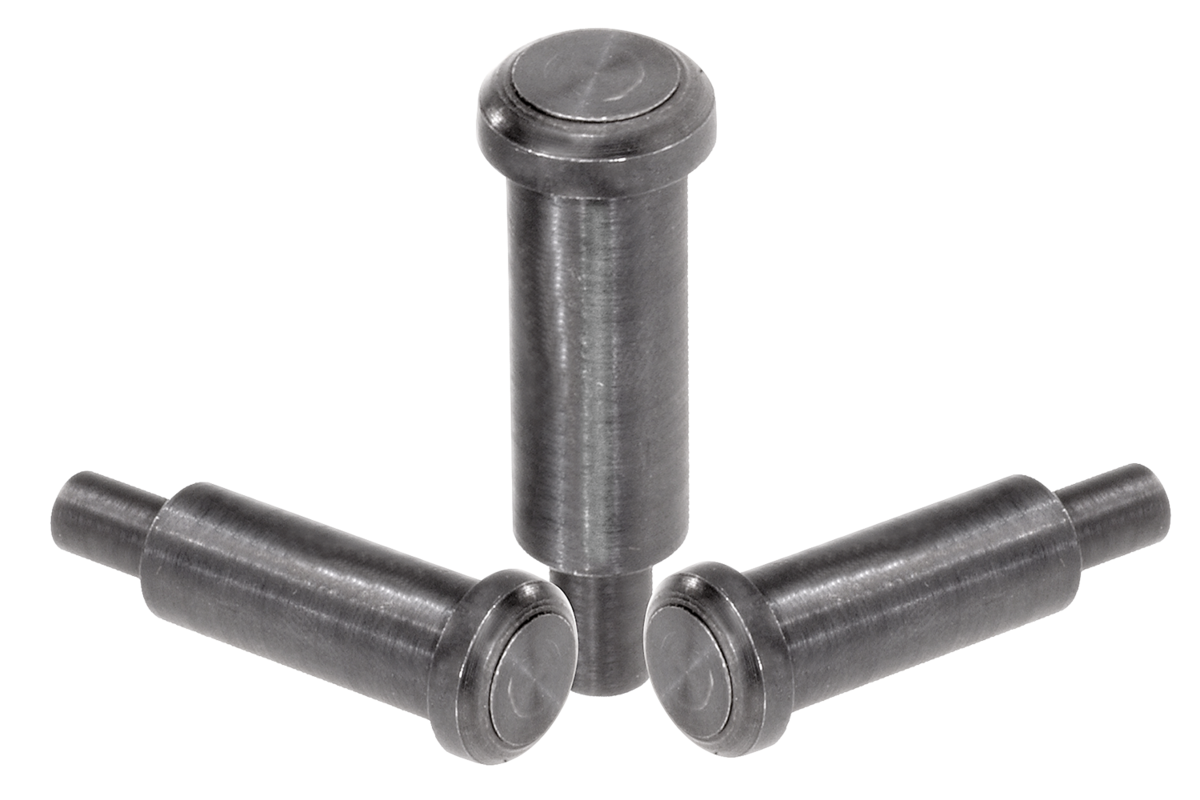

Item description/product images

DescriptionMaterial:Steel.Version:Black oxidized.
Thrust pin hardened.

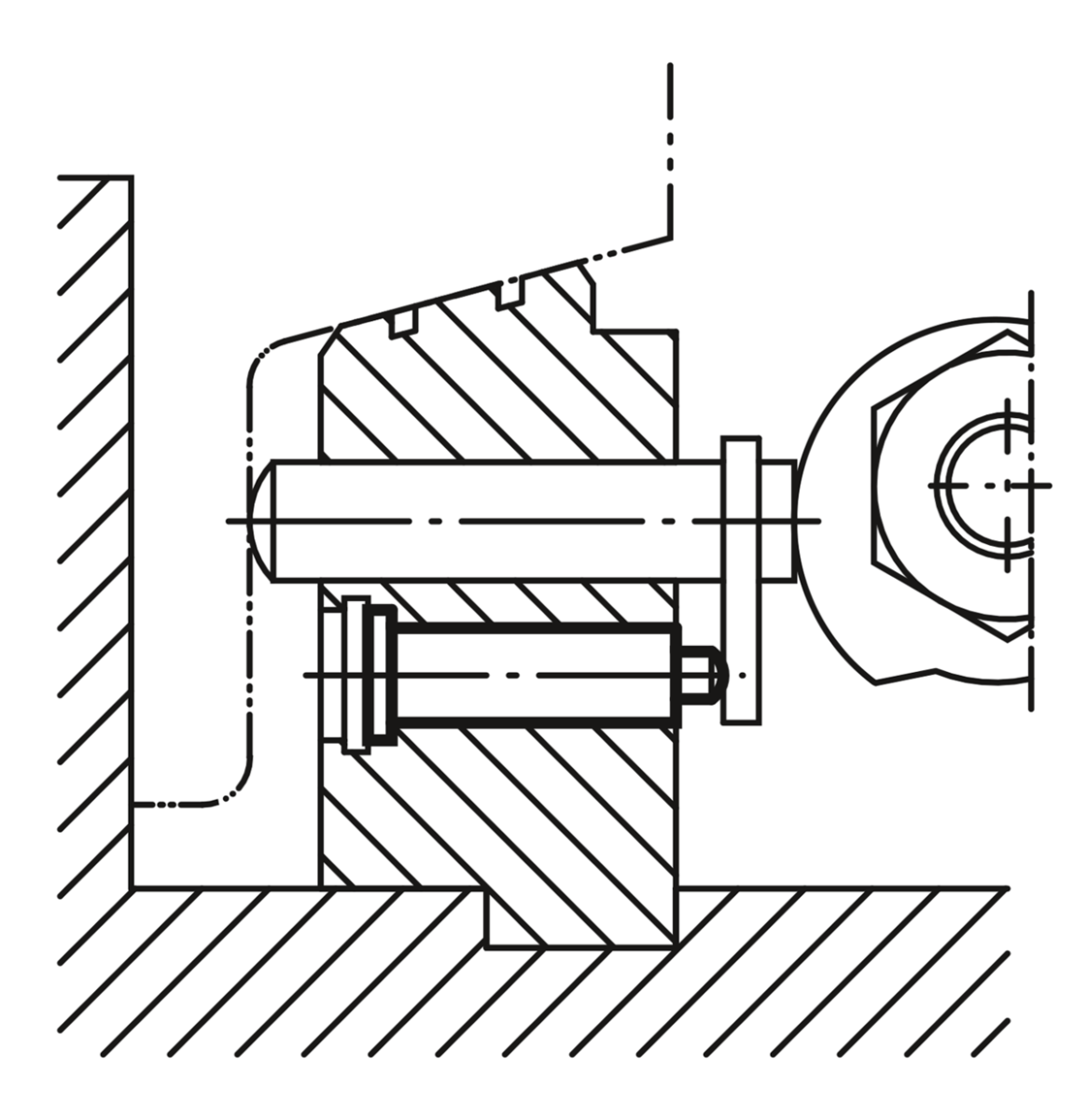

Note:These spring plungers are chiefly used as ejectors and spring stops in machine construction.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0331 Spring plungers with head 214 kB

Drawings

Spring plungers with head

Item selection/filter

Item No.

DD1D3HLL2L3Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0331.0662,9583,5203,261022 10.02 $ (USD)
K0331.0883,95104,5243,283090 10.49 $ (USD)
K0331.10105,95135,53041042110 10.88 $ (USD)
K0331.12127,95166,53651250130 11.72 $ (USD)
