Product groups
Locators
K0332

Locators

go back

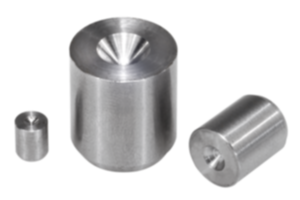

Item description/product images

DescriptionMaterial:Free-cutting steel.Version:Bright, hardened.Note:If abrasion-resistant and exact locking is necessary, locators can be used together with spring plungers, especially with strong spring force.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0332 Locators 170 kB

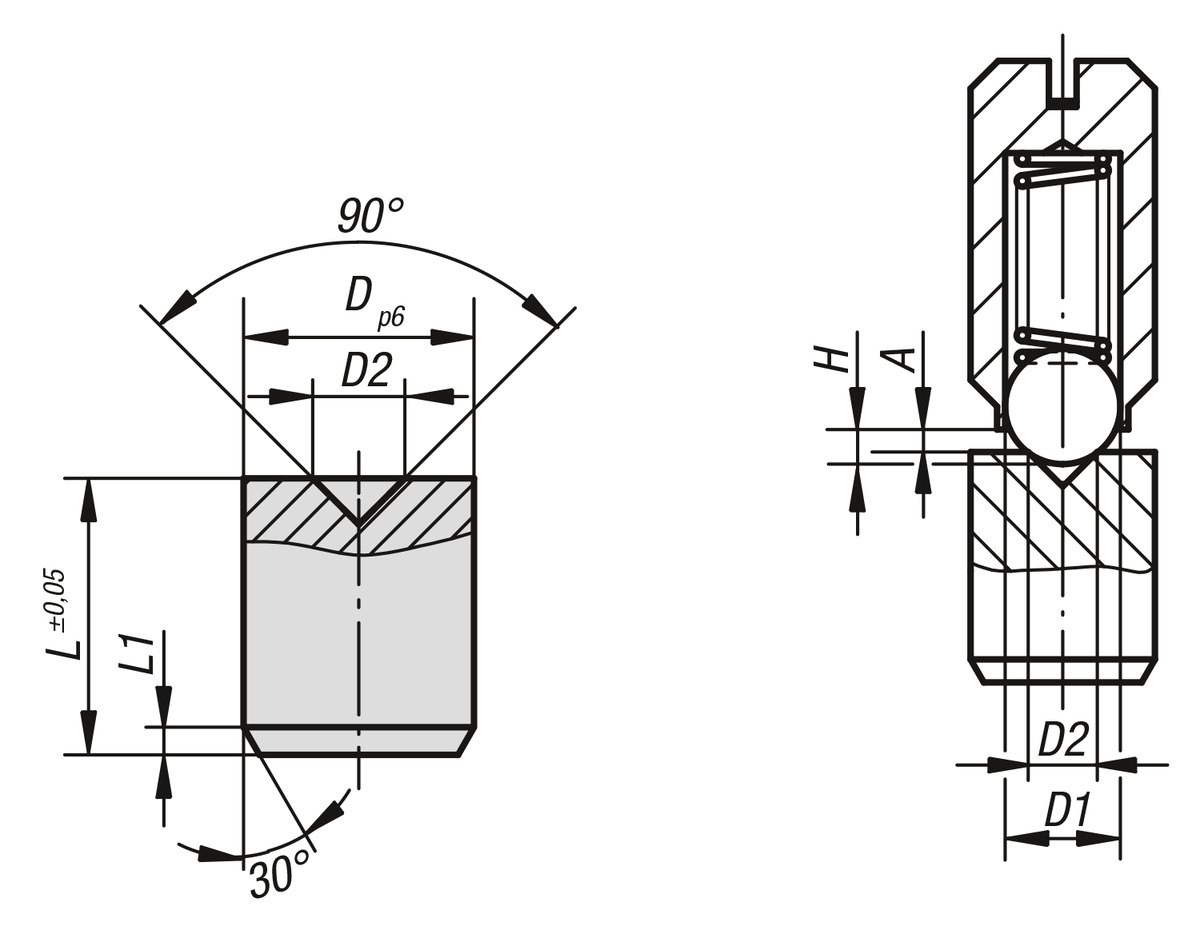

Drawings

Locators

Item selection/filter

Item No.

Suitable for
spring plungers
with ØD
DD1D2HLL1CADAcc.PriceOrder
K0332.04015- / M44see relevant product page for dimensions1,5see relevant product page for dimensions50,5on request
K0332.05020Ø4 / M55see relevant product page for dimensions2see relevant product page for dimensions60,5on request
K0332.06020Ø5 / M66see relevant product page for dimensions2see relevant product page for dimensions80,7on request
K0332.08030Ø6 / M88see relevant product page for dimensions3see relevant product page for dimensions101on request
K0332.10040Ø8 / M1010see relevant product page for dimensions4see relevant product page for dimensions121,2on request
K0332.12060Ø10 / M1212see relevant product page for dimensions6see relevant product page for dimensions141,5on request
K0332.16080Ø12 / M1616see relevant product page for dimensions8see relevant product page for dimensions182on request
