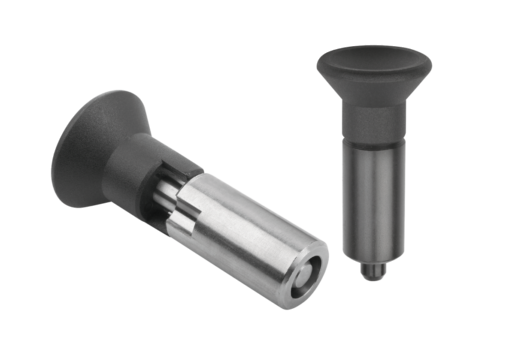

Item description/product images

Show/filter all items

DescriptionMaterial:Steel version:
Indexing pin hardened:
Sleeve 1.0403 weldable.
Indexing pin grade 5.8.

Stainless steel version:
Indexing pin hardened:
Sleeve 1.4301 (AISI 304 equivalent) weldable.
Indexing pin 1.4034 (AISI 420 equivalent).

Indexing pin not hardened:
Sleeve 1.4301 (AISI 304 equivalent) weldable.
Indexing pin 1.4305 (AISI 303 equivalent).

Mushroom knob black grey thermoplastic.Version:Steel version:
Indexing pin hardened, ground and with black oxide finish.

Stainless steel version:
Indexing pin hardened, ground and bright.
Indexing pin not hardened, ground and bright.Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged.
style M is recommended for applications in where the indexing plungers should remain disengaged over extended periods and the pin prevented from springing back.
To weld the indexing plungers we recommend inert gas-shielded welding with TIG welding equipment.On request:Special versions.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0346 Indexing plungerswithout collar

158 kB

Drawings (total overview)

Indexing plungers without collar, style M

More information

Drawings

Indexing plungers without collar, style M

Item selection/filter

Item No.	Style	Main material	Surface finish body	D	D1	D2	L	L1	H	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
K0346.2004	M	steel	hardened	4	10	18	38,5	21	4	1	6	12	on request
K0346.2105	M	steel	hardened	5	12	21	43,5	24	5	1,3	5	12	on request
K0346.2206	M	steel	hardened	6	14	25	51,7	28	6	1,8	6	14	on request
K0346.2308	M	steel	hardened	8	18	33	68	36	8	2,3	15	35	on request
K0346.2410	M	steel	hardened	10	22	33	74	40	10	2,8	15	34	on request
K0346.02004	M	stainless steel	hardened	4	10	18	38,5	21	4	1	6	12	on request
K0346.02105	M	stainless steel	hardened	5	12	21	43,5	24	5	1,3	5	12	on request
K0346.02206	M	stainless steel	hardened	6	14	25	51,7	28	6	1,8	6	14	on request
K0346.02308	M	stainless steel	hardened	8	18	33	68	36	8	2,3	15	35	on request
K0346.02410	M	stainless steel	hardened	10	22	33	74	40	10	2,8	15	34	on request
K0346.12004	M	stainless steel	not hardened	4	10	18	38,5	21	4	1	6	12	on request
K0346.12105	M	stainless steel	not hardened	5	12	21	43,5	24	5	1,3	5	12	on request
K0346.12206	M	stainless steel	not hardened	6	14	25	51,7	28	6	1,8	6	14	on request
K0346.12308	M	stainless steel	not hardened	8	18	33	68	36	8	2,3	15	35	on request
K0346.12410	M	stainless steel	not hardened	10	22	33	74	40	10	2,8	15	34	on request

Indexing plungers without collar, style L

More information

Drawings

Indexing plungers without collar, style L

Item selection/filter

Item No.	Style	Main material	Surface finish body	D	D1	D2	L	L1	H	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
K0346.1004	L	steel	hardened	4	10	18	38,5	21	4	1	6	12	on request
K0346.1105	L	steel	hardened	5	12	21	43,5	24	5	1,3	5	12	on request
K0346.1206	L	steel	hardened	6	14	25	51,7	28	6	1,8	6	14	on request
K0346.1308	L	steel	hardened	8	18	33	68	36	8	2,3	15	35	on request
K0346.1410	L	steel	hardened	10	22	33	74	40	10	2,8	15	34	on request
K0346.01004	L	stainless steel	hardened	4	10	18	38,5	21	4	1	6	12	on request
K0346.01105	L	stainless steel	hardened	5	12	21	43,5	24	5	1,3	5	12	on request
K0346.01206	L	stainless steel	hardened	6	14	25	51,7	28	6	1,8	6	14	on request
K0346.01308	L	stainless steel	hardened	8	18	33	68	36	8	2,3	15	35	on request
K0346.01410	L	stainless steel	hardened	10	22	33	74	40	10	2,8	15	34	on request
K0346.11004	L	stainless steel	not hardened	4	10	18	38,5	21	4	1	6	12	on request
K0346.11105	L	stainless steel	not hardened	5	12	21	43,5	24	5	1,3	5	12	on request
K0346.11206	L	stainless steel	not hardened	6	14	25	51,7	28	6	1,8	6	14	on request
K0346.11308	L	stainless steel	not hardened	8	18	33	68	36	8	2,3	15	35	on request
K0346.11410	L	stainless steel	not hardened	10	22	33	74	40	10	2,8	15	34	on request
