Product groups
Indexing plungerswithout collar
K0347

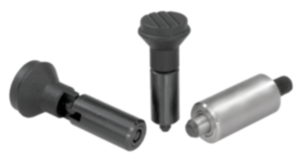

Indexing plungers without collar

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Steel version:
Indexing pin hardened:
Sleeve 1.0403 weldable.
Indexing pin grade 5.8.

Stainless steel version:
Indexing pin hardened:
Sleeve 1.4301 (AISI 304 equivalent) weldable.
Indexing pin 1.4034 (AISI 420 equivalent).

Indexing pin not hardened:
Sleeve 1.4301 (AISI 304 equivalent) weldable.
Indexing pin 1.4305 (AISI 303 equivalent).

Mushroom knob black grey thermoplastic.
Version:Steel version:
Indexing pin hardened, ground and with black oxide finish.

Stainless steel version:
Indexing pin hardened, ground and bright.
Indexing pin not hardened, ground and bright.
Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged.
style M is recommended for applications where the indexing plungers should remain disengaged over an extended period and the pin prevented from springing back.
Special grips can be fitted on the projecting threaded pin of style N. This pin is also suitable for actuating the indexing plunger e.g. automatically (program-controlled) with the aid of a pneumatic cylinder or remote controlled with bowden cables.
To weld the indexing plungers we recommend inert gas shielded welding with TIG welding equipment.
On request:Special versions.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0347 Indexing plungerswithout collar 148 kB

Drawings (total overview)

Indexing plungerswithout collar

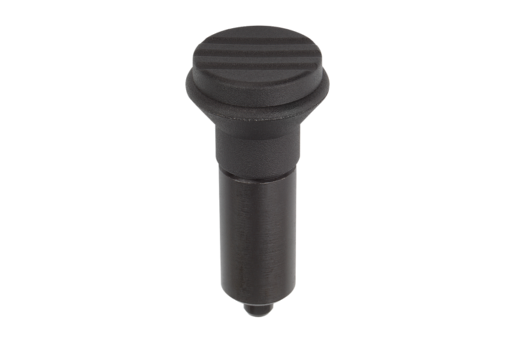

Indexing plungers without collar, style L

More information

Drawings

Indexing plungers without collar, style L

Item selection/filter

Item No.StyleMain
material
Surface finish
body
DD1D2LL1HFx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0347.1105Lsteelhardened512214724-1,3512 on request
K0347.1206Lsteelhardened614255628-1,8614 on request
K0347.1308Lsteelhardened818337436-2,31535 on request
K0347.1410Lsteelhardened1022338040-2,81534 on request
K0347.01105Lstainless steelhardened512214724-1,3512 on request
K0347.01206Lstainless steelhardened614255628-1,8614 on request
K0347.01308Lstainless steelhardened818337436-2,31535 on request
K0347.01410Lstainless steelhardened1022338040-2,81534 on request
K0347.11105Lstainless steelnot hardened512214724-1,3512 on request
K0347.11206Lstainless steelnot hardened614255628-1,8614 on request
K0347.11308Lstainless steelnot hardened818337436-2,31535 on request
K0347.11410Lstainless steelnot hardened1022338040-2,81534 on request

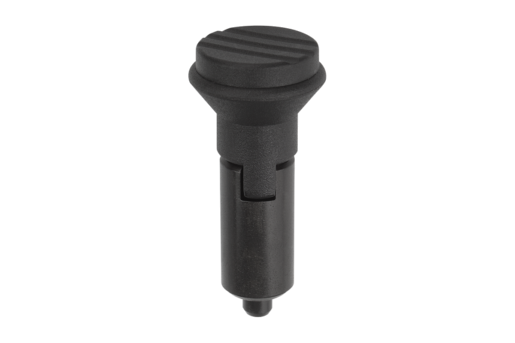

Indexing plungers without collar, style M

More information

Drawings

Indexing plungers without collar, style M

Item selection/filter

Item No.StyleMain
material
Surface finish
body
DD1D2LL1HFx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0347.2105Msteelhardened512214724-1,3512 on request
K0347.2206Msteelhardened614255628-1,8614 on request
K0347.2308Msteelhardened818337436-2,31535 on request
K0347.2410Msteelhardened1022338040-2,81534 on request
K0347.02105Mstainless steelhardened512214724-1,3512 on request
K0347.02206Mstainless steelhardened614255628-1,8614 on request
K0347.02308Mstainless steelhardened818337436-2,31535 on request
K0347.02410Mstainless steelhardened1022338040-2,81534 on request
K0347.12105Mstainless steelnot hardened512214724-1,3512 on request
K0347.12206Mstainless steelnot hardened614255628-1,8614 on request
K0347.12308Mstainless steelnot hardened818337436-2,31535 on request
K0347.12410Mstainless steelnot hardened1022338040-2,81534 on request

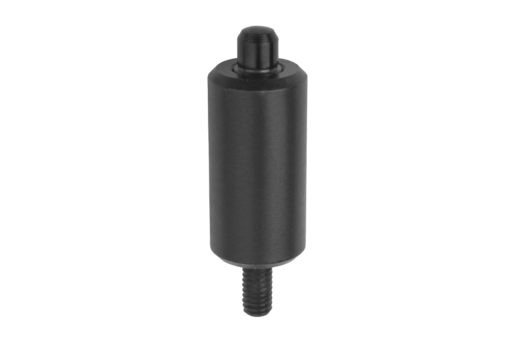

Indexing plungers without collar, style N

More information

Drawings

Indexing plungers without collar, style N

Item selection/filter

Item No.StyleMain
material
Surface finish
body
DD1D3LL1L4Stroke
S
Fx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0347.3105Nsteelhardened512M43724851,3512 on request
K0347.3206Nsteelhardened614M64328961,8614 on request
K0347.3308Nsteelhardened818M856361282,31535 on request
K0347.3410Nsteelhardened1022M8624012102,81534 on request
K0347.03105Nstainless steelhardened512M43724851,3512 on request
K0347.03206Nstainless steelhardened614M64328961,8614 on request
K0347.03308Nstainless steelhardened818M856361282,31535 on request
K0347.03410Nstainless steelhardened1022M8624012102,81534 on request
K0347.13105Nstainless steelnot hardened512M43724851,3512 on request
K0347.13206Nstainless steelnot hardened614M64328961,8614 on request
K0347.13308Nstainless steelnot hardened818M856361282,31535 on request
K0347.13410Nstainless steelnot hardened1022M8624012102,81534 on request
