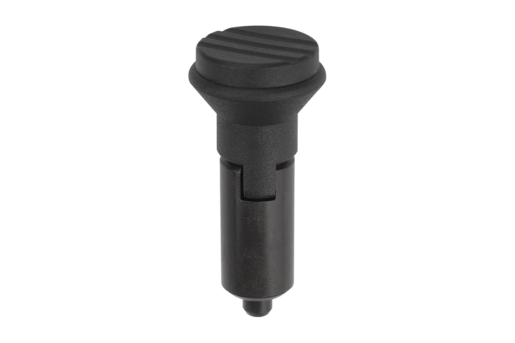

Indexing plungers without collar, style M
K0347_M

Indexing plungers without collar, style M

go back

Item description/product images

DescriptionMaterial:Steel version:
Indexing pin hardened:
Sleeve 1.0403 weldable.
Indexing pin grade 5.8.

Stainless steel version:
Indexing pin hardened:
Sleeve 1.4301 (AISI 304 equivalent) weldable.
Indexing pin 1.4034 (AISI 420 equivalent).

Indexing pin not hardened:
Sleeve 1.4301 (AISI 304 equivalent) weldable.
Indexing pin 1.4305 (AISI 303 equivalent).

Mushroom knob black grey thermoplastic.
Version:Steel version:
Indexing pin hardened, ground, black oxidized.

Stainless steel version:
Indexing pin hardened, ground and bright.
Indexing pin not hardened, ground and bright.
Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged.
style M is recommended for applications where the indexing plungers should remain disengaged over an extended period and the pin prevented from springing back.
Special grips can be fitted on the projecting threaded pin of style N. This pin is also suitable for actuating the indexing plunger e.g. automatically (program-controlled) with the aid of a pneumatic cylinder or remote controlled with bowden cables.
If the indexing plunger is welded on, the sleeve should be tack welded so that the spring is not thermally damaged due to high temperatures.
On request:Special versions.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0347_M Indexing plungers without collar, style M 148 kB

Drawings

Indexing plungers without collar, style M

Item selection/filter

Order No.styleMain
material
Surface finish
body
DD1D2LL1Travel
S
Fx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0347.2105Msteelhardened51221472451,3512 15.61 $ (USD)
K0347.2206Msteelhardened61425562861,8614 17.28 $ (USD)
K0347.2308Msteelhardened81833743682,31535 20.41 $ (USD)
K0347.2410Msteelhardened1022338040102,81534 31.22 $ (USD)
K0347.02105Mstainless steelhardened51221472451,3512 26.52 $ (USD)
K0347.02206Mstainless steelhardened61425562861,8614 30.13 $ (USD)
K0347.02308Mstainless steelhardened81833743682,31535 36.78 $ (USD)
K0347.02410Mstainless steelhardened1022338040102,81534 57.92 $ (USD)
K0347.12105Mstainless steelnot hardened51221472451,3512 26.52 $ (USD)
K0347.12206Mstainless steelnot hardened61425562861,8614 30.13 $ (USD)
K0347.12308Mstainless steelnot hardened81833743682,31535 36.78 $ (USD)
K0347.12410Mstainless steelnot hardened1022338040102,81534 57.92 $ (USD)
