Indexing plungers without collar, style N
K0347_N

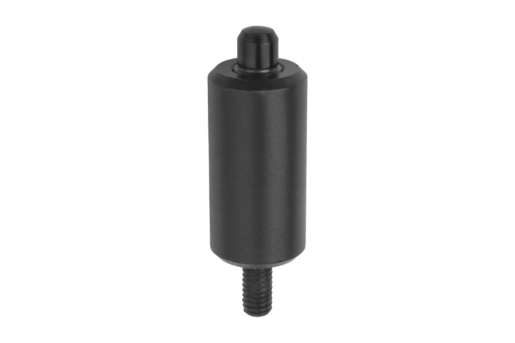

Indexing plungers without collar, style N

go back

Item description/product images

DescriptionMaterial:Steel version:
Indexing pin hardened:
Sleeve 1.0403 weldable.
Indexing pin grade 5.8.

Stainless steel version:
Indexing pin hardened:
Sleeve 1.4301 (AISI 304 equivalent) weldable.
Indexing pin 1.4034 (AISI 420 equivalent).

Indexing pin not hardened:
Sleeve 1.4301 (AISI 304 equivalent) weldable.
Indexing pin 1.4305 (AISI 303 equivalent).

Mushroom knob black grey thermoplastic.
Version:Steel version:
Indexing pin hardened, ground, black oxidized.

Stainless steel version:
Indexing pin hardened, ground and bright.
Indexing pin not hardened, ground and bright.
Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged.
style M is recommended for applications where the indexing plungers should remain disengaged over an extended period and the pin prevented from springing back.
Special grips can be fitted on the projecting threaded pin of style N. This pin is also suitable for actuating the indexing plunger e.g. automatically (program-controlled) with the aid of a pneumatic cylinder or remote controlled with bowden cables.
To weld the indexing plungers we recommend inert gas shielded welding with TIG welding equipment.
On request:Special versions.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0347_N Indexing plungers without collar, style N 113 kB

Drawings

Indexing plungers without collar, style N

Item selection/filter

Order No.styleMain
material
Surface finish
body
DD1D3LL1L4Travel
S
Fx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0347.3105Nsteelhardened512M43724851,3512 10.10 $ (USD)
K0347.3206Nsteelhardened614M64328961,8614 11.14 $ (USD)
K0347.3308Nsteelhardened818M856361282,31535 13.79 $ (USD)
K0347.3410Nsteelhardened1022M8624012102,81534 21.29 $ (USD)
K0347.03105Nstainless steelhardened512M43724851,3512 17.09 $ (USD)
K0347.03206Nstainless steelhardened614M64328961,8614 19.47 $ (USD)
K0347.03308Nstainless steelhardened818M856361282,31535 24.88 $ (USD)
K0347.03410Nstainless steelhardened1022M8624012102,81534 39.25 $ (USD)
K0347.13105Nstainless steelnot hardened512M43724851,3512 17.09 $ (USD)
K0347.13206Nstainless steelnot hardened614M64328961,8614 19.47 $ (USD)
K0347.13308Nstainless steelnot hardened818M856361282,31535 24.88 $ (USD)
K0347.13410Nstainless steelnot hardened1022M8624012102,81534 39.25 $ (USD)
