Locking pins

go back

Products
- Ball Lock Pins
  - Locking Pins
    - Locking pins

Item description/product images

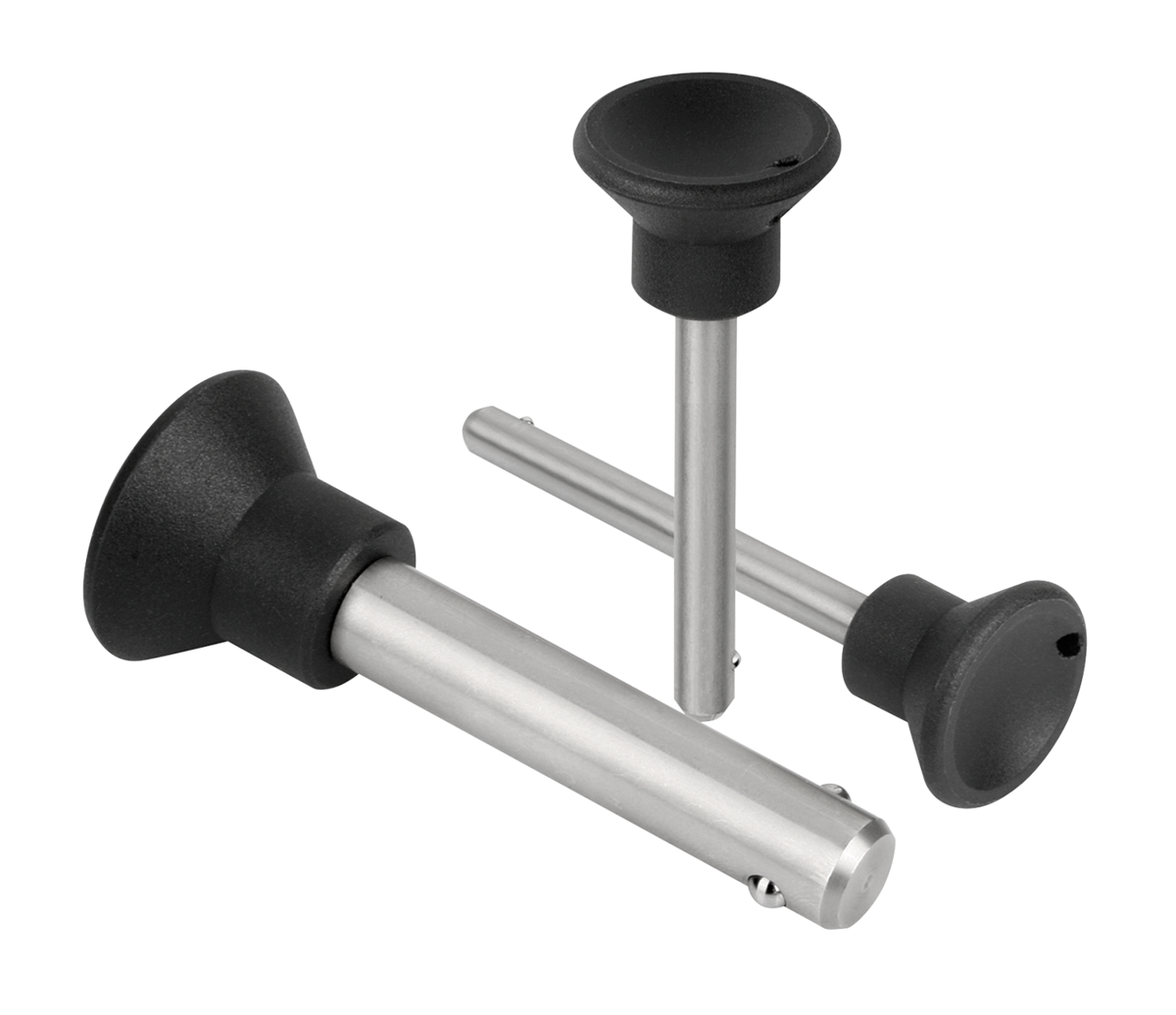

DescriptionMaterial:Grip thermoplastic.
Steel parts stainless steel.Version:Grip black.

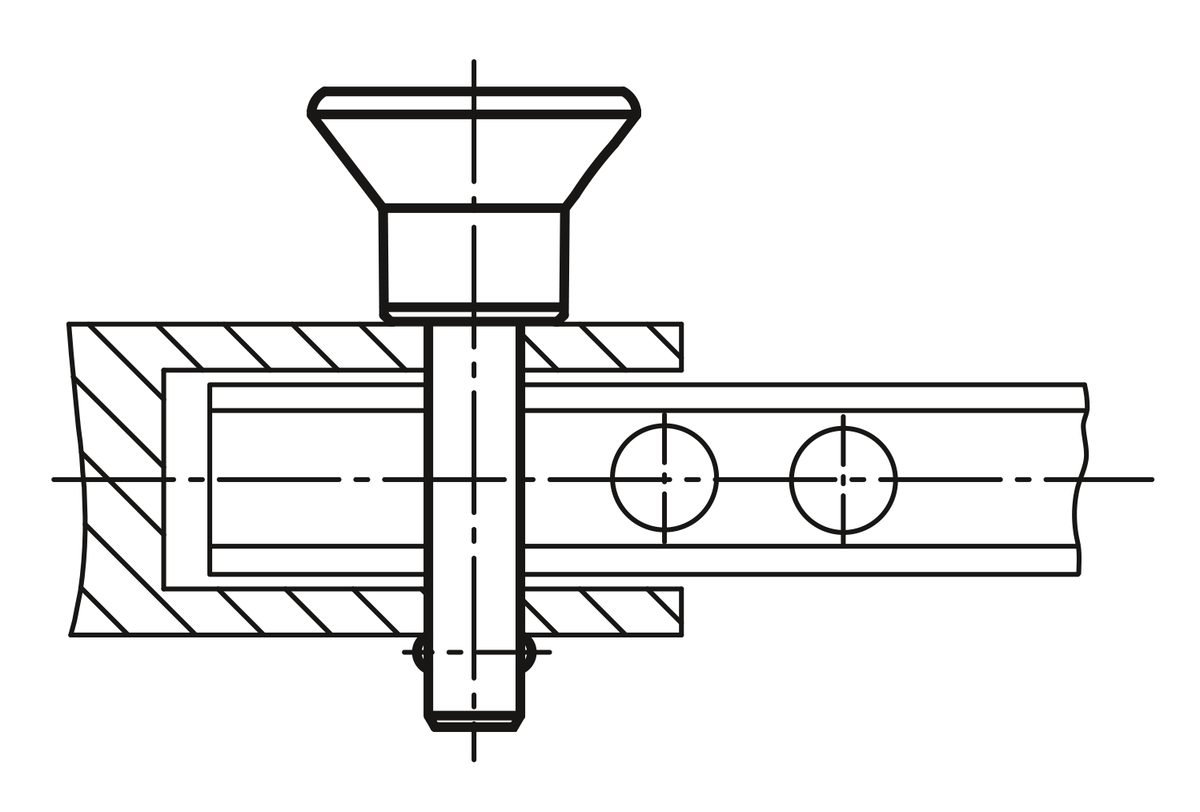

Stainless steel bright.Note:Locking pins are used for quick and easy fixating and joining of parts and workpieces.

Shearing force double-shear (F) = S · τ aB max.Accessory:Bushing for ball lock pins K0724
Safety Spiral Cable K0367
Retaining Cable with eye K0367
Pin Retaining Ring K0367Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0365 Locking pins

181 kB

Drawings

Item selection/filter

Item No.	D	D1	D2	D3	L	L1	L2	L5	Receiving hole H11	Shearing force double shear max. kN	Price
K0365.2506010	25	6	6,5	14	10	7	17,7	17	6	22	14.73 $ (USD)
K0365.2506015	25	6	6,5	14	15	7	17,7	22	6	22	15.17 $ (USD)
K0365.2506020	25	6	6,5	14	20	7	17,7	27	6	22	15.48 $ (USD)
K0365.2506025	25	6	6,5	14	25	7	17,7	32	6	22	15.69 $ (USD)
K0365.2506030	25	6	6,5	14	30	7	17,7	37	6	22	16.13 $ (USD)
K0365.2506040	25	6	6,5	14	40	7	17,7	47	6	22	16.55 $ (USD)
K0365.2506050	25	6	6,5	14	50	7	17,7	57	6	22	16.98 $ (USD)
K0365.2508015	25	8	8,75	14	15	8	17,7	23	8	38	15.48 $ (USD)
K0365.2508020	25	8	8,75	14	20	8	17,7	28	8	38	15.69 $ (USD)
K0365.2508025	25	8	8,75	14	25	8	17,7	33	8	38	16.13 $ (USD)
K0365.2508030	25	8	8,75	14	30	8	17,7	38	8	38	16.55 $ (USD)
K0365.2508040	25	8	8,75	14	40	8	17,7	48	8	38	16.98 $ (USD)
K0365.2508050	25	8	8,75	14	50	8	17,7	58	8	38	17.40 $ (USD)
K0365.3310015	33	10	12	19	15	9	24	24	10	60	19.11 $ (USD)
K0365.3310020	33	10	12	19	20	9	24	29	10	60	19.55 $ (USD)
K0365.3310025	33	10	12	19	25	9	24	34	10	60	19.97 $ (USD)
K0365.3310030	33	10	12	19	30	9	24	39	10	60	20.40 $ (USD)
K0365.3310040	33	10	12	19	40	9	24	49	10	60	20.81 $ (USD)
K0365.3310050	33	10	12	19	50	9	24	59	10	60	21.27 $ (USD)
K0365.3312020	33	12	14,5	19	20	10	24	30	12	86	22.02 $ (USD)
K0365.3312030	33	12	14,5	19	30	10	24	40	12	86	22.86 $ (USD)
K0365.3312040	33	12	14,5	19	40	10	24	50	12	86	24.14 $ (USD)
K0365.3312050	33	12	14,5	19	50	10	24	60	12	86	25.23 $ (USD)
