- Positioning, clamping, retaining and fixating of workpieces
- Individually adjustable
- Thrust pin, hardened
- Suitable for thin plates
Description
Material
Steel.
Version
Thrust pin steel, hardened and electro zinc-plated.
body blue electro zinc-plated.
body blue electro zinc-plated.
Note

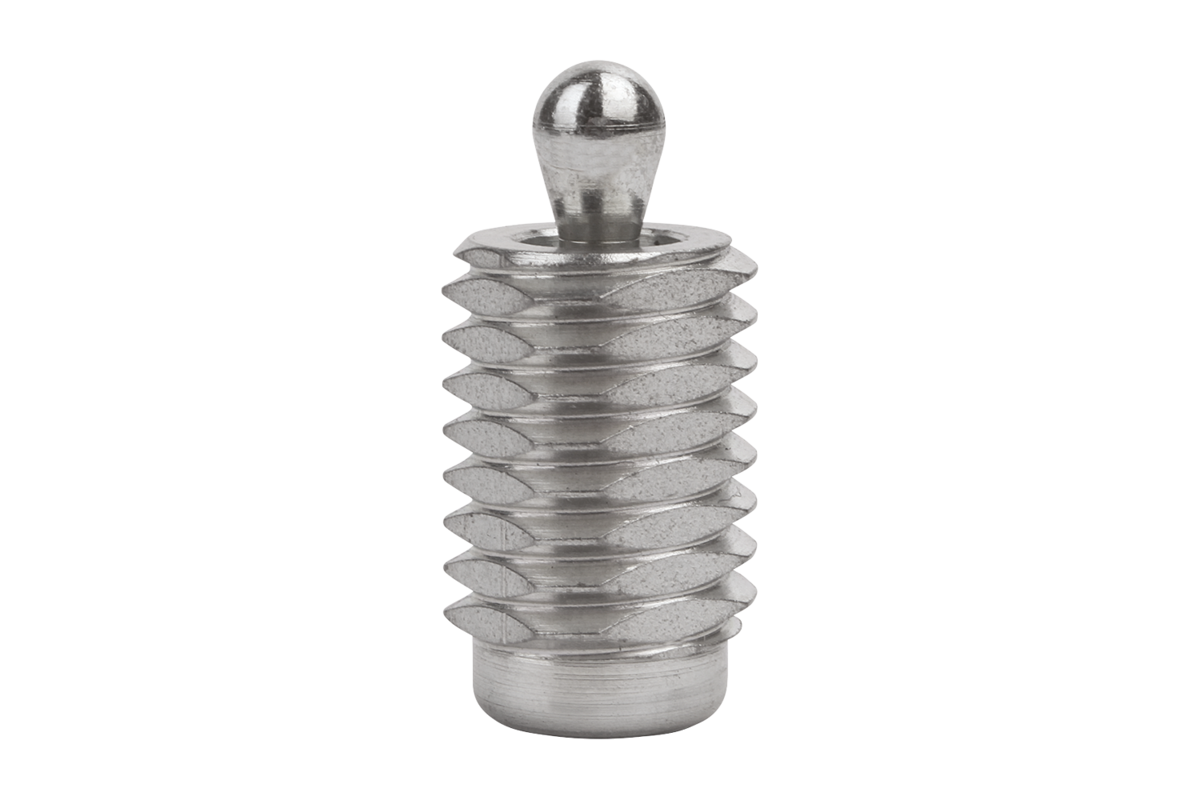

Lateral spring plungers with threaded body can be individually adjusted to suit the the part being held. The threaded body is also suitable for screwing into thin sheet metal as it can be fastened with one or two nuts.
W and Z are customer specified.
W and Z are customer specified.
Drawing reference
1) assembly tool
