Lateral spring plungers
K0374

Lateral spring plungers

go back

Item description/product images

Show/filter all items

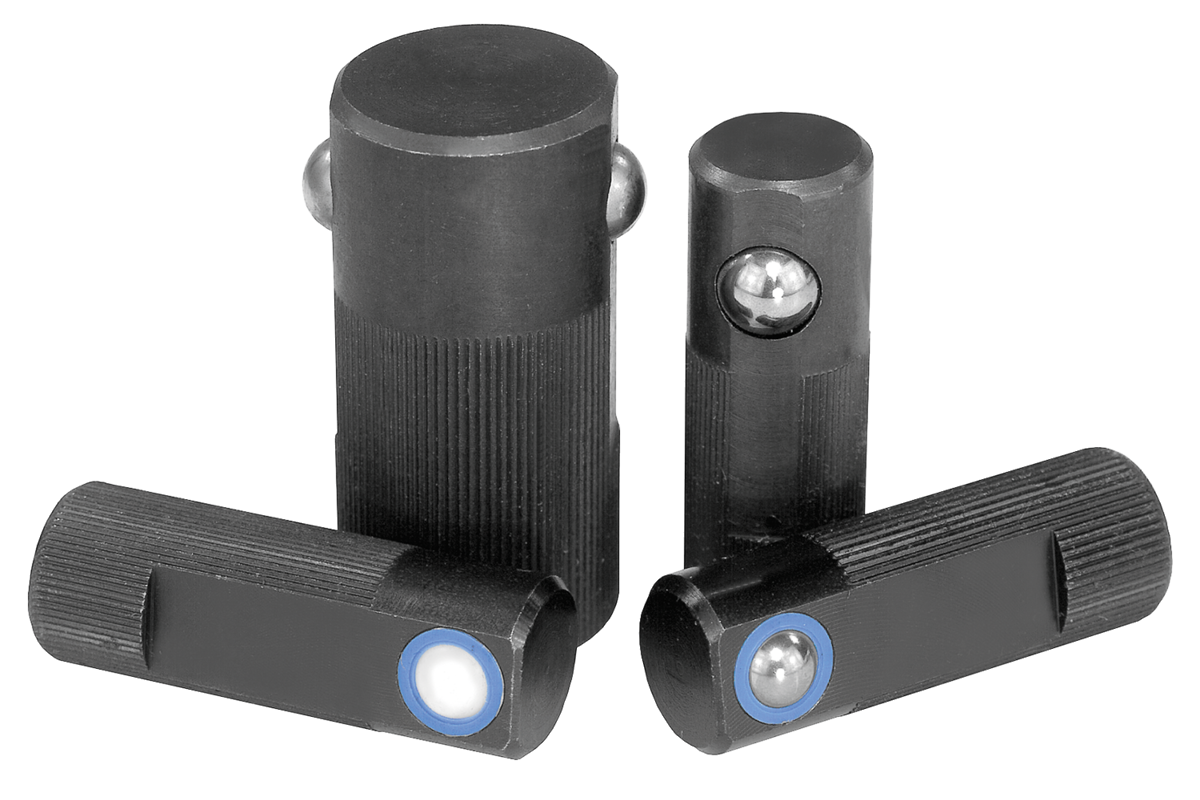

DescriptionMaterial:Body mild steel.
Ball steel or stainless steel hardened or POM.
Spring stainless steel or plastic.
Version:Body black oxide finish.
Ball bright.
Note:The lateral spring plunger must be pressed into the hole to at least depth L3. These plungers are for positioning and holding small parts in fixtures. If mechanical machining of the workpiece is to be carried out, other clamps may be necessary. When the fixture is not in use it should be ensured that plastic springs are not under stress.

Spring force refers to a mean value.
Drawing reference:
1) knurl
2) light holding
RoHS
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0374 Lateral spring plungers 283 kB

Drawings (total overview)

Lateral spring plungers
Lateral spring plungers

Lateral spring plungers, style A

More information

Drawings

Lateral spring plungers, style A

Item selection/filter

Item No.StyleDD1HLL2L3BReceiving hole
H8
Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0374.008A830,7253,663,282,56,5on request
K0374.010A1041,0304,274104,59on request
K0374.012A1251,5354,895126,513on request
K0374.014A146,51,8405,8105,414818on request

Lateral spring plungers, style B

More information

Drawings

Lateral spring plungers, style B

Item selection/filter

Item No.StyleDD1HLL2L3BReceiving hole
H8
Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0374.108B830,7253,663,282,56,5on request
K0374.110B1041,0304,274104,59on request
K0374.112B1251,5354,895126,513on request
K0374.114B146,51,8405,8105,414818on request

Lateral spring plungers, style C

More information

Drawings

Lateral spring plungers, style C

Item selection/filter

Item No.StyleDD1HLL2L3BReceiving hole
H8
Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0374.410C105,5130784,51060170on request
K0374.412C126,51,535895,51280260on request
K0374.414C1482409106,514120480on request

Lateral spring plungers, style D

More information

Drawings

Lateral spring plungers, style D

Item selection/filter

Item No.StyleDD1HLL2L3BReceiving hole
H8
Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0374.616D165,51,5357111516110220on request
K0374.618D186,51,8408121718120330on request
K0374.622D2282,5459152122130540on request
