Product groups
Indexing plungerswithout collar
K0635

Indexing plungers without collar

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Steel version
Indexing pin hardened:
quality class 5.8.

Stainless steel version
Indexing pin hardened:
Threaded sleeve 1.4305 (AISI 303 equivalent).
Indexing pin 1.4034 (AISI 420 equivalent).

Indexing pin not hardened:
Threaded sleeve 1.4305 (AISI 303 equivalent).
Indexing pin 1.4305 (AISI 303 equivalent).

Split ring stainless steel 1.4310 (AISI 310 equivalent), bright.
Version:Steel version:
Indexing pin hardened, ground and with black oxide finish.

Stainless steel version:
Indexing pin hardened, ground and bright.
Indexing pin not hardened, ground and bright.
Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been disengaged.
The key ring is also suitable for actuation of the indexing plungers e.g. automatically (programme-controlled) with the aid of a pneumatic cylinder or remote control actuation with bowden cables.
A screw-in washer can be supplied to help screw the indexing plungers in. The washer is fitted onto the threaded sleeve so that the carrier pins engage in the slot.
On request:Special versions.Accessory:Spacer rings K0665Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0635 Indexing plungerswithout collar 185 kB

Drawings (total overview)

Indexing plungerswithout collar

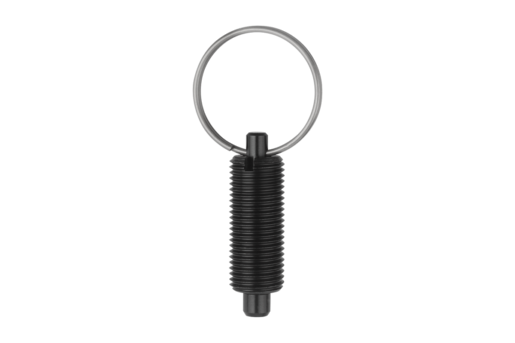

Indexing plungers without collar, style T

More information

Drawings

Indexing plungers without collar, style T

Item selection/filter

Item No.StyleMain
material
Version

DD1D4L1HFx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
Item No.
installation
tool
CADAcc.PriceOrder
K0635.3004Tsteelhardened4M8x1152141612K0344.90 on request
K0635.3105Tsteelhardened5M10x1232451,3512K0344.91 on request
K0635.3206Tsteelhardened6M12x1,5232861,8614K0344.92 on request
K0635.3308Tsteelhardened8M16x1,5283682,31535K0344.93 on request
K0635.3410Tsteelhardened10M20x1,52840102,81534K0344.94 on request
K0635.03004Tstainless steelhardened4M8x1152141612K0344.90 on request
K0635.03105Tstainless steelhardened5M10x1232451,3512K0344.91 on request
K0635.03206Tstainless steelhardened6M12x1,5232861,8614K0344.92 on request
K0635.03308Tstainless steelhardened8M16x1,5283682,31535K0344.93 on request
K0635.03410Tstainless steelhardened10M20x1,52840102,81534K0344.94 on request
K0635.13004Tstainless steelnot hardened4M8x1152141612K0344.90 on request
K0635.13105Tstainless steelnot hardened5M10x1232451,3512K0344.91 on request
K0635.13206Tstainless steelnot hardened6M12x1,5232861,8614K0344.92 on request
K0635.13308Tstainless steelnot hardened8M16x1,5283682,31535K0344.93 on request
K0635.13410Tstainless steelnot hardened10M20x1,52840102,81534K0344.94 on request

Indexing plungers without collar, style U

More information

Drawings

Indexing plungers without collar, style U

Item selection/filter

Item No.StyleMain
material
Version

DD1D4L1HSWFx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
Item No.
installation
tool
CADAcc.PriceOrder
K0635.4004Usteelhardened4M8x115214131612K0344.90 on request
K0635.4105Usteelhardened5M10x123245171,3512K0344.91 on request
K0635.4206Usteelhardened6M12x1,523286191,8614K0344.92 on request
K0635.4308Usteelhardened8M16x1,528368242,31535K0344.93 on request
K0635.4410Usteelhardened10M20x1,5284010302,81534K0344.94 on request
K0635.04004Ustainless steelhardened4M8x115214131612K0344.90 on request
K0635.04105Ustainless steelhardened5M10x123245171,3512K0344.91 on request
K0635.04206Ustainless steelhardened6M12x1,523286191,8614K0344.92 on request
K0635.04308Ustainless steelhardened8M16x1,528368242,31535K0344.93 on request
K0635.04410Ustainless steelhardened10M20x1,5284010302,81534K0344.94 on request
K0635.14004Ustainless steelnot hardened4M8x115214131612K0344.90 on request
K0635.14105Ustainless steelnot hardened5M10x123245171,3512K0344.91 on request
K0635.14206Ustainless steelnot hardened6M12x1,523286191,8614K0344.92 on request
K0635.14308Ustainless steelnot hardened8M16x1,528368242,31535K0344.93 on request
K0635.14410Ustainless steelnot hardened10M20x1,5284010302,81534K0344.94 on request
