Indexing plungers without collar, style T
K0635_T

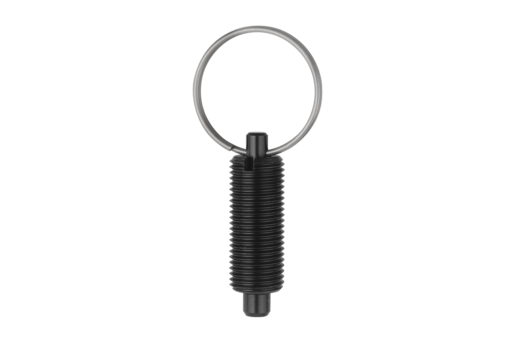

Indexing plungers without collar, style T

go back

Item description/product images

DescriptionMaterial:Steel version
Indexing pin hardened:
quality class 5.8.

Stainless steel version
Indexing pin hardened:
Threaded sleeve 1.4305 (AISI 303 equivalent).
Indexing pin 1.4034 (AISI 420 equivalent).

Indexing pin not hardened:
Threaded sleeve 1.4305 (AISI 303 equivalent).
Indexing pin 1.4305 (AISI 303 equivalent).

Split ring stainless steel 1.4310 (AISI 310 equivalent), bright.
Version:Steel version:
Indexing pin hardened, ground and with black oxide finish.

Stainless steel version:
Indexing pin hardened, ground and bright.
Indexing pin not hardened, ground and bright.
Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been disengaged.
The key ring is also suitable for actuation of the indexing plungers e.g. automatically (programme-controlled) with the aid of a pneumatic cylinder or remote control actuation with bowden cables.
A screw-in washer can be supplied to help screw the indexing plungers in. The washer is fitted onto the threaded sleeve so that the carrier pins engage in the slot.
On request:Special versions.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0635_T Indexing plungers without collar, style T 144 kB

Drawings

Indexing plungers without collar, style T

Item selection/filter

Item No.StyleMain
material
Version

DD1D4LL1HFx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
Item No.
installation
tool
CADAcc.PriceOrder
K0635.3004Tsteelhardened4M8x115402141612K0344.90 on request
K0635.3105Tsteelhardened5M10x123522451,3512K0344.91 on request
K0635.3206Tsteelhardened6M12x1,523572861,8614K0344.92 on request
K0635.3308Tsteelhardened8M16x1,528723682,31535K0344.93 on request
K0635.3410Tsteelhardened10M20x1,5287840102,81534K0344.94 on request
K0635.03004Tstainless steelhardened4M8x115402141612K0344.90 on request
K0635.03105Tstainless steelhardened5M10x123522451,3512K0344.91 on request
K0635.03206Tstainless steelhardened6M12x1,523572861,8614K0344.92 on request
K0635.03308Tstainless steelhardened8M16x1,528723682,31535K0344.93 on request
K0635.03410Tstainless steelhardened10M20x1,5287840102,81534K0344.94 on request
K0635.13004Tstainless steelnot hardened4M8x115402141612K0344.90 on request
K0635.13105Tstainless steelnot hardened5M10x123522451,3512K0344.91 on request
K0635.13206Tstainless steelnot hardened6M12x1,523572861,8614K0344.92 on request
K0635.13308Tstainless steelnot hardened8M16x1,528723682,31535K0344.93 on request
K0635.13410Tstainless steelnot hardened10M20x1,5287840102,81534K0344.94 on request
