K0635_U Indexing plungers without collar, style U |
go back |
|

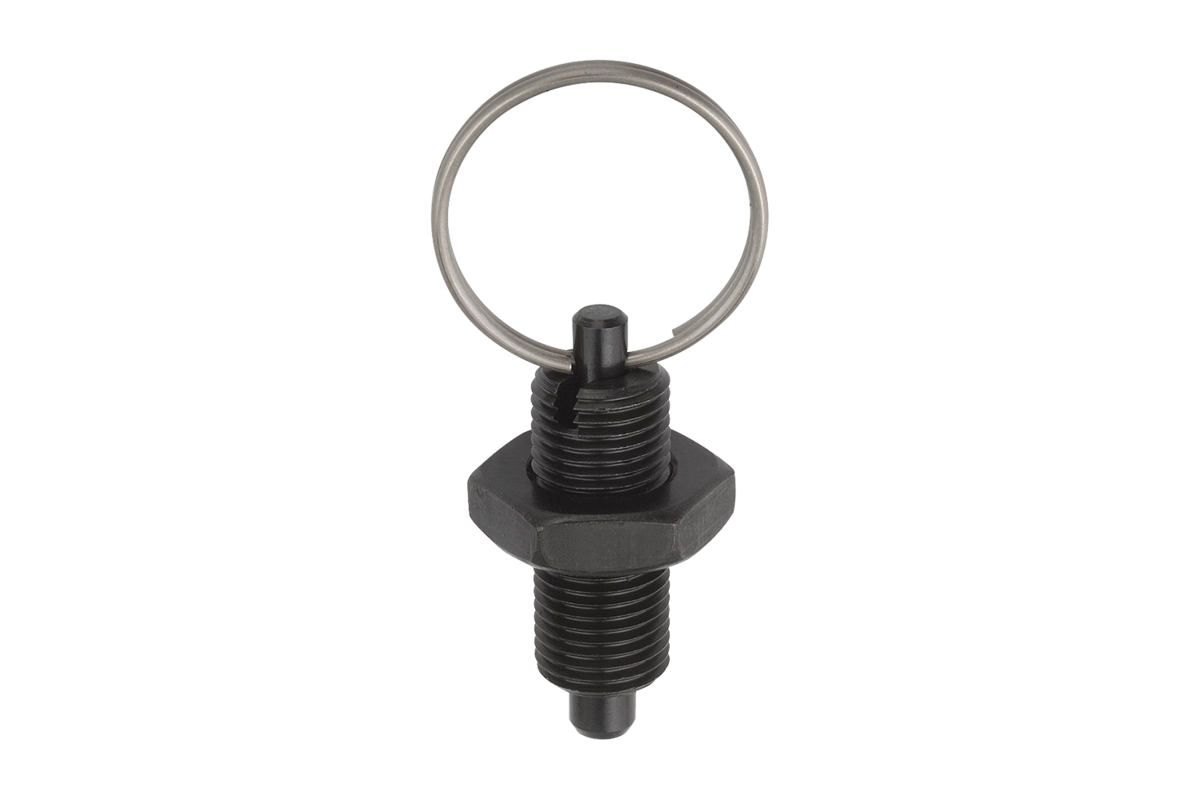

Item description/product images |
|
|
DescriptionMaterial:Steel version
Indexing pin hardened:
grade 5.8.
Stainless steel version
Indexing pin hardened:
Threaded body 1.4305 (AISI 303 equivalent).
Indexing pin 1.4034 (AISI 420 equivalent).
Indexing pin not hardened:
Threaded body 1.4305 (AISI 303 equivalent).
Indexing pin 1.4305 (AISI 303 equivalent).
Key ring 1.4310 (AISI 301 equivalent), bright.Version:Steel version: Indexing pin hardened, ground, black oxidized.
Stainless steel version: Indexing pin hardened, ground and bright. Indexing pin not hardened, ground and bright.Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been disengaged. The key ring is also suitable for actuation of the indexing plungers e.g. automatically (program-controlled) with the aid of a pneumatic cylinder or remote control with bowden cables. A screw-in washer can be supplied to help screw in the indexing plungers. The washer is fitted onto the threaded body so that the carrier pins engage in the slot.On request:Special versions.Accessory:Spacer rings K0665Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No. | style | Main material | Surface finish body | D | D1 | D4 | L | L1 | Travel S | SW | Fx30° | Spring force initial pressure F1 approx. N | Spring force final pressure F2 approx. N | Item No. installation tool | CAD | Acc. | Price | Order |
---|
K0635.4004 | U | steel | hardened | 4 | M8x1 | 15 | 40 | 21 | 4 | 13 | 1 | 6 | 12 | K0344.90 | |  | 10.33 $ (USD) | | K0635.4105 | U | steel | hardened | 5 | M10x1 | 23 | 52 | 24 | 5 | 17 | 1,3 | 5 | 12 | K0344.91 | |  | 9.57 $ (USD) | | K0635.4206 | U | steel | hardened | 6 | M12x1,5 | 23 | 57 | 28 | 6 | 19 | 1,8 | 6 | 14 | K0344.92 | |  | 10.36 $ (USD) | | K0635.4308 | U | steel | hardened | 8 | M16x1,5 | 28 | 72 | 36 | 8 | 24 | 2,3 | 15 | 35 | K0344.93 | |  | 12.51 $ (USD) | | K0635.4410 | U | steel | hardened | 10 | M20x1,5 | 28 | 78 | 40 | 10 | 30 | 2,8 | 15 | 34 | K0344.94 | |  | 18.50 $ (USD) | | K0635.04004 | U | stainless steel | hardened | 4 | M8x1 | 15 | 40 | 21 | 4 | 13 | 1 | 6 | 12 | K0344.90 | |  | 18.30 $ (USD) | | K0635.04105 | U | stainless steel | hardened | 5 | M10x1 | 23 | 52 | 24 | 5 | 17 | 1,3 | 5 | 12 | K0344.91 | |  | 17.49 $ (USD) | | K0635.04206 | U | stainless steel | hardened | 6 | M12x1,5 | 23 | 57 | 28 | 6 | 19 | 1,8 | 6 | 14 | K0344.92 | |  | 19.85 $ (USD) | | K0635.04308 | U | stainless steel | hardened | 8 | M16x1,5 | 28 | 72 | 36 | 8 | 24 | 2,3 | 15 | 35 | K0344.93 | |  | 23.51 $ (USD) | | K0635.04410 | U | stainless steel | hardened | 10 | M20x1,5 | 28 | 78 | 40 | 10 | 30 | 2,8 | 15 | 34 | K0344.94 | |  | 34.40 $ (USD) | | K0635.14004 | U | stainless steel | not hardened | 4 | M8x1 | 15 | 40 | 21 | 4 | 13 | 1 | 6 | 12 | K0344.90 | |  | 18.30 $ (USD) | | K0635.14105 | U | stainless steel | not hardened | 5 | M10x1 | 23 | 52 | 24 | 5 | 17 | 1,3 | 5 | 12 | K0344.91 | |  | 17.49 $ (USD) | | K0635.14206 | U | stainless steel | not hardened | 6 | M12x1,5 | 23 | 57 | 28 | 6 | 19 | 1,8 | 6 | 14 | K0344.92 | |  | 19.85 $ (USD) | | K0635.14308 | U | stainless steel | not hardened | 8 | M16x1,5 | 28 | 72 | 36 | 8 | 24 | 2,3 | 15 | 35 | K0344.93 | |  | 23.51 $ (USD) | | K0635.14410 | U | stainless steel | not hardened | 10 | M20x1,5 | 28 | 78 | 40 | 10 | 30 | 2,8 | 15 | 34 | K0344.94 | |  | 34.40 $ (USD) | |
