Indexing plungerswithout collar
K0636

Indexing plungers without collar

go back

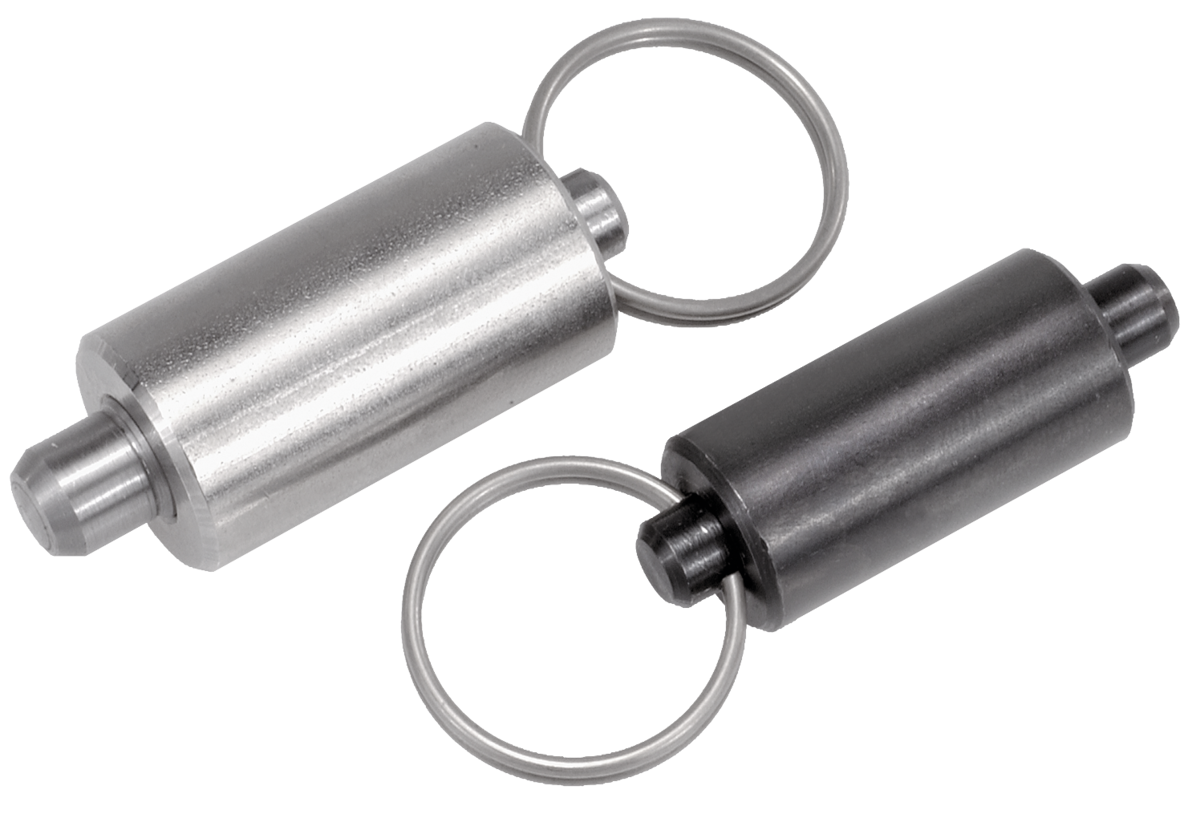

Item description/product images

DescriptionMaterial:Steel version:
Indexing pin hardened.
body1.0403 weldable.
Indexing pin grade 5.8.

Stainless steel version:
Indexing pin hardened:
body 1.4301 weldable.
Indexing pin 1.4034.

Indexing pin not hardened:
body 1.4301 weldable.
Indexing pin 1.4305.

Key ring 1.4310, bright.
Version:- Steel version, locking pin hardened:
black oxide finish, locking pin ground
- Stainless steel version, locking pin hardened:
natural finish, locking pin ground
- Stainless steel version, locking pin not hardened:
natural finish, locking pin ground
Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been disengaged.
The key ring is also suitable for actuating the indexing plungers e.g. automatically (program-controlled) with the aid of a pneumatic cylinder or remote controlled with bowden cables.
To weld the indexing plungers we recommend inert gas shielded welding with TIG welding equipment.
On request:Special versions.
RoHS
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0636 Indexing plungerswithout collar 175 kB

Drawings

Indexing plungerswithout collar

Overview of items (compressed)

Item selection/filter
Item No.
Steel
hardened
Item No.
Stainless steel
hardened
Item No.
Stainless steel
not hardened
StyleDD1D4L1HFx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
Filter
K0636.4004K0636.04004K0636.14004V410152141612
K0636.4105K0636.04105K0636.14105V512232451,3512
K0636.4206K0636.04206K0636.14206V614232861,8614
K0636.4308K0636.04308K0636.14308V818283682,31535
K0636.4410K0636.04410K0636.14410V10222840102,81534
