Spacer rings stainless steel

go back

News
- NEW Product Innovations
  - Spacer rings stainless steel

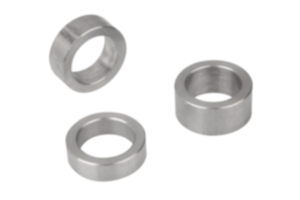

Item description/product images

DescriptionMaterial:1.4305 (AISI 303 equivalent) or 1.4404 (AISI 316L equivalent) stainless steel.Version:Bright.Note:Spacer rings are used to adjust the indexing plunger thread length to suit the application wall thickness.Drawing reference:

1) Indexing plunger
2) Spacer ring

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0665 Spacer rings stainless steel

136 kB

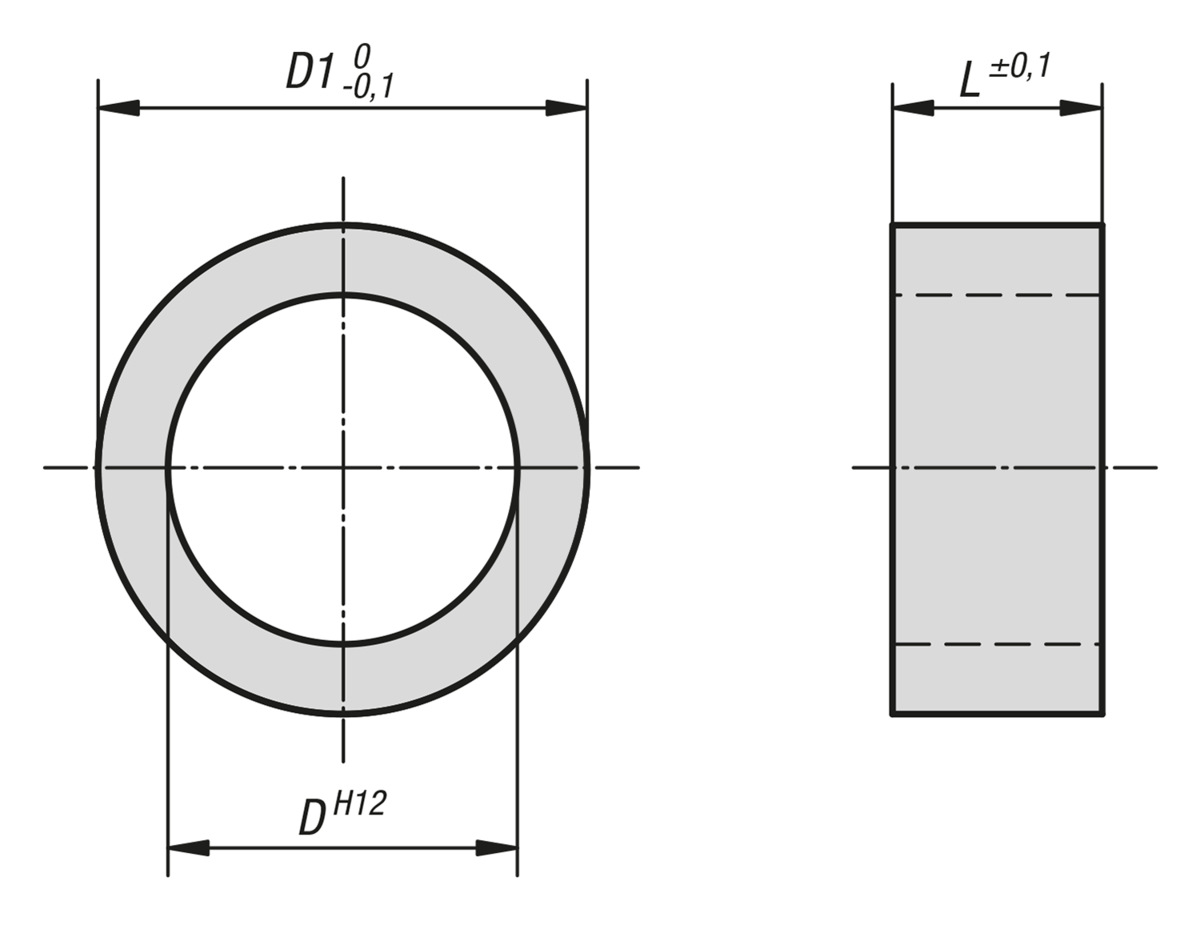

Drawings

Item selection/filter

Item No.	Steel code	D	D1	L	Price
K0665.90811021	1.4305	8	11	2	1.00 $ (USD)
K0665.90811031	1.4305	8	11	3	1.08 $ (USD)
K0665.90811041	1.4305	8	11	4	1.18 $ (USD)
K0665.90811061	1.4305	8	11	6	1.24 $ (USD)
K0665.90811081	1.4305	8	11	8	1.32 $ (USD)
K0665.91014021	1.4305	10	14	2	1.08 $ (USD)
K0665.91014031	1.4305	10	14	3	1.20 $ (USD)
K0665.91014041	1.4305	10	14	4	1.24 $ (USD)
K0665.91014061	1.4305	10	14	6	1.30 $ (USD)
K0665.91014081	1.4305	10	14	8	1.48 $ (USD)
K0665.91215021	1.4305	12	15	2	1.12 $ (USD)
K0665.91215041	1.4305	12	15	4	1.32 $ (USD)
K0665.91215051	1.4305	12	15	5	1.44 $ (USD)
K0665.91215061	1.4305	12	15	6	1.48 $ (USD)
K0665.91215081	1.4305	12	15	8	1.64 $ (USD)
K0665.91217021	1.4305	12	17	2	1.30 $ (USD)
K0665.91217041	1.4305	12	17	4	1.46 $ (USD)
K0665.91217051	1.4305	12	17	5	1.64 $ (USD)
K0665.91217061	1.4305	12	17	6	1.74 $ (USD)
K0665.91217081	1.4305	12	17	8	1.80 $ (USD)
K0665.91621041	1.4305	16	21	4	1.70 $ (USD)
K0665.91621051	1.4305	16	21	5	1.80 $ (USD)
K0665.91621061	1.4305	16	21	6	1.98 $ (USD)
K0665.91621081	1.4305	16	21	8	2.10 $ (USD)
K0665.91621101	1.4305	16	21	10	2.22 $ (USD)
K0665.90811022	1.4404	8	11	2	1.16 $ (USD)
K0665.90811032	1.4404	8	11	3	1.25 $ (USD)
K0665.90811042	1.4404	8	11	4	1.35 $ (USD)
K0665.90811062	1.4404	8	11	6	1.44 $ (USD)
K0665.90811082	1.4404	8	11	8	1.53 $ (USD)
K0665.91014022	1.4404	10	14	2	1.25 $ (USD)
K0665.91014032	1.4404	10	14	3	1.39 $ (USD)
K0665.91014042	1.4404	10	14	4	1.44 $ (USD)
K0665.91014062	1.4404	10	14	6	1.49 $ (USD)
K0665.91014082	1.4404	10	14	8	1.72 $ (USD)
K0665.91215022	1.4404	12	15	2	1.29 $ (USD)
K0665.91215042	1.4404	12	15	4	1.53 $ (USD)
K0665.91215052	1.4404	12	15	5	1.67 $ (USD)
K0665.91215062	1.4404	12	15	6	1.72 $ (USD)
K0665.91215082	1.4404	12	15	8	1.90 $ (USD)
K0665.91217022	1.4404	12	17	2	1.49 $ (USD)
K0665.91217042	1.4404	12	17	4	1.68 $ (USD)
K0665.91217052	1.4404	12	17	5	1.90 $ (USD)
K0665.91217062	1.4404	12	17	6	2.00 $ (USD)
K0665.91217082	1.4404	12	17	8	2.10 $ (USD)
K0665.91621042	1.4404	16	21	4	1.98 $ (USD)
K0665.91621052	1.4404	16	21	5	2.10 $ (USD)
K0665.91621062	1.4404	16	21	6	2.28 $ (USD)
K0665.91621082	1.4404	16	21	8	2.41 $ (USD)
K0665.91621102	1.4404	16	21	10	2.56 $ (USD)
