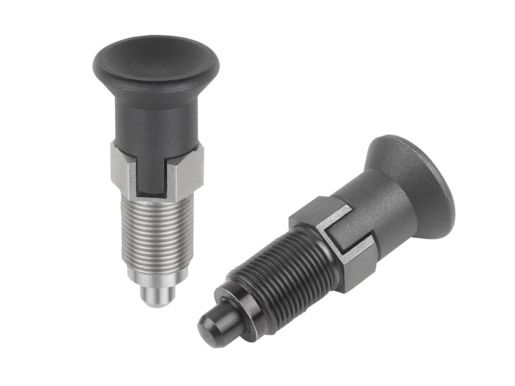

Indexing plungers - Premium with cylindrical pin, style A
K0736_A

Indexing plungers - Premium with cylindrical pin, style A

go back

Item description/product images

DescriptionMaterial:Steel version:
indexing pin hardened: grade 5.8

Stainless steel version:
indexing pin hardened: threaded body 1.4305 (AISI 303 equivalent), indexing pin 1.4305 (AISI 303 equivalent).

Mushroom knob black gray thermoplastic.
Version:Steel version:
indexing pin hardened, ground and black oxidized.

Stainless steel version:
indexing pin hardened, ground and bright.
Note:Premium indexing plungers are characterized by more stringent manufacturing requirements for the indexing plungers and threaded body. In addition, a centering locator that can be used to increase the positioning accuracy is provided on the threaded body. These indexing plungers are used when it is necessary to prevent shifting of the locked position by transverse forces and greater positioning accuracy is required. A new locking position can only be set after the pin has been manually disengaged. When high lateral forces are to be expected, the centering locator should be used.
Assembly:When using the threaded body centering, it is recommended the receiving reamed hole be machined before tapping.On request:Special versions and spacer rings.Accessory:Matching cylindrical bushing K0736.
Locknut K0700….
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0736_A Indexing plungers - Premium with cylindrical pin, style A 278 kB

Drawings

Indexing plungers - Premium with cylindrical pin, style A

Item selection/filter

Order No.styleMain
material
DD1D2D3D4D5LL1L2L3L4Travel
S
SW1Fx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0736.41105Asteel5M10x121866 -0,01/-0,0243,51771535131,3512  30.95 $ (USD)
K0736.41206Asteel6M12x1,525108,58,5 -0,01/-0,0351,72081736141,8614  34.39 $ (USD)
K0736.41308Asteel8M16x1,53313,51111 -0,01/-0,036826102348192,31535  44.27 $ (USD)
K0736.41410Asteel10M20x1,533171111 -0,01/-0,0374281225410222,81534  58.94 $ (USD)
K0736.401105Astainless steel5M10x121866 -0,01/-0,0243,51771535131,3512  46.45 $ (USD)
K0736.401206Astainless steel6M12x1,525108,58,5 -0,01/-0,0351,72081736141,8614  51.58 $ (USD)
K0736.401308Astainless steel8M16x1,53313,51111 -0,01/-0,036826102348192,31535  64.17 $ (USD)
K0736.401410Astainless steel10M20x1,533171111 -0,01/-0,0374281225410222,81534  85.47 $ (USD)
