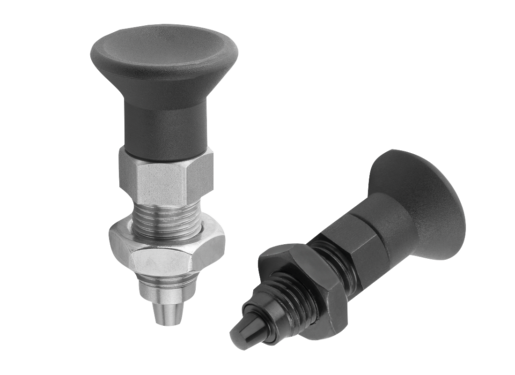

Indexing plungers - Premiumwith tapered pin
K0736

Indexing plungers - Premium with tapered pin

go back

Item description/product images

DescriptionMaterial:Steel version:
indexing pin hardened: grade 5.8

Stainless steel version:
indexing pin hardened: threaded body 1.4305 (AISI 303 equivalent), indexing pin 1.4305 (AISI 303 equivalent).

Mushroom knob black gray thermoplastic.
Version:Steel version:
indexing pin hardened, ground and black oxide finish.

Stainless steel version:
indexing pin hardened, ground and bright.
Note:Premium indexing plungers are characterized by more stringent manufacturing requirements for the indexing plungers and the threaded body. In addition, a centering locator that can be used to increase the positioning accuracy is provided on the threaded body. These indexing plungers are used when it is necessary to prevent shifting of the locked position by transverse forces and greater positioning accuracy is required. A new locking position can only be set after the pin has been manually disengaged. When high lateral forces are to be expected, the centering locator should be used.Assembly:When using the threaded body centering, it is recommended the receiving reamed hole be machined before tapping.
The conical contact surface is aligned by the threaded body and locking nut.
On request:Special versions and spacer rings.Accessory:Matching tapered bushing K0736.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0736 Indexing plungers - Premiumwith tapered pin 247 kB

Drawings (total overview)

Indexing plungers - Premiumwith tapered pin

Indexing plungers - Premium with tapered pin, Form B

More information

Drawings

Indexing plungers - Premium with tapered pin, Form B

Item selection/filter

Item No.StyleMain
material
DD1D2D3D4D5LL1L2L3L4HH2SW1SW2Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0736.52105Bsteel5M10x121866 -0,01/-0,0243,5177153541317512 on request
K0736.52206Bsteel6M12x1,525108,58,5 -0,01/-0,0351,7208173651419614 on request
K0736.52308Bsteel8M16x1,53313,51111 -0,01/-0,036826102348719241535 on request
K0736.52410Bsteel10M20x1,533171111 -0,01/-0,0374281225410922301534 on request
K0736.502105Bstainless steel5M10x121866 -0,01/-0,0243,5177153541317512 on request
K0736.502206Bstainless steel6M12x1,525108,58,5 -0,01/-0,0351,7208173651419614 on request
K0736.502308Bstainless steel8M16x1,53313,51111 -0,01/-0,036826102348719241535 on request
K0736.502410Bstainless steel10M20x1,533171111 -0,01/-0,0374281225410922301534 on request

Indexing plungers - Premium with tapered pin, Form D

More information

Drawings

Indexing plungers - Premium with tapered pin, Form D

Item selection/filter

Item No.StyleMain
material
DD1D2D3D4D5LL1L2L3L4HH2SW1SW2Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0736.54105Dsteel5M10x121866 -0,01/-0,0243,5177153541317512on request
K0736.54206Dsteel6M12x1,525108,58,5 -0,01/-0,0351,7208173651419614on request
K0736.54308Dsteel8M16x1,53313,51111 -0,01/-0,036826102348719241535on request
K0736.54410Dsteel10M20x1,533171111 -0,01/-0,0374281225410922301534on request
K0736.504105Dstainless steel5M10x121866 -0,01/-0,0243,5177153541317512on request
K0736.504206Dstainless steel6M12x1,525108,58,5 -0,01/-0,0351,7208173651419614on request
K0736.504308Dstainless steel8M16x1,53313,51111 -0,01/-0,036826102348719241535on request
K0736.504410Dstainless steel10M20x1,533171111 -0,01/-0,0374281225410922301534on request
