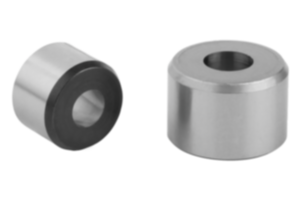

DescriptionMaterial:Steel or 1.4034 (AISI 420 equivalent) stainless steel.Version:Steel version: black oxidized, hardened and ground. Stainless steel version: bright, hardened and ground.Note:Matching bushing for premium indexing plungers with tapered pin K0736.Assembly:To increase the coaxial alignment accuracy, the holes for the bushing and the premium indexing plunger can be machined simultaniously.Special features:
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
