Indexing plungers pneumatic
K1116

Indexing plungers pneumatic

go back

Item description/product images

DescriptionMaterial:Steel version:
threaded sleeve and thrust pin, free-cutting steel.
hexagon nuts, steel, grade 04.

Stainless steel version:
threaded sleeve 1.4305 (AISI 303 equivalent)
thrust pin 1.4034 (AISI 420 equivalent)
hexagon nuts, A2 stainless steel.
Version:Steel version:
threaded body, black oxidized
thrust pin hardened, black oxidized and ground
hexagon nuts, black oxidized

Stainless steel version:
threaded body, bright
thrust pin, hardened, ground and bright
hexagon nuts, bright
Threaded version:The indexing plungers are operated by applying compressed air.
The spring-loaded reset occurs by disconnecting the air supply.
Pneumatic cylinder:Single-acting piston rod cylinder.
Materials:
cylinder tube, nickel-plated brass,
piston rod, stainless steel
seals, NBR, PU.
Operating medium:
filtered and dried air, oiled or not oiled.
Application temperature: -20 °C to +80 °C.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1116 Indexing plungers pneumatic 194 kB

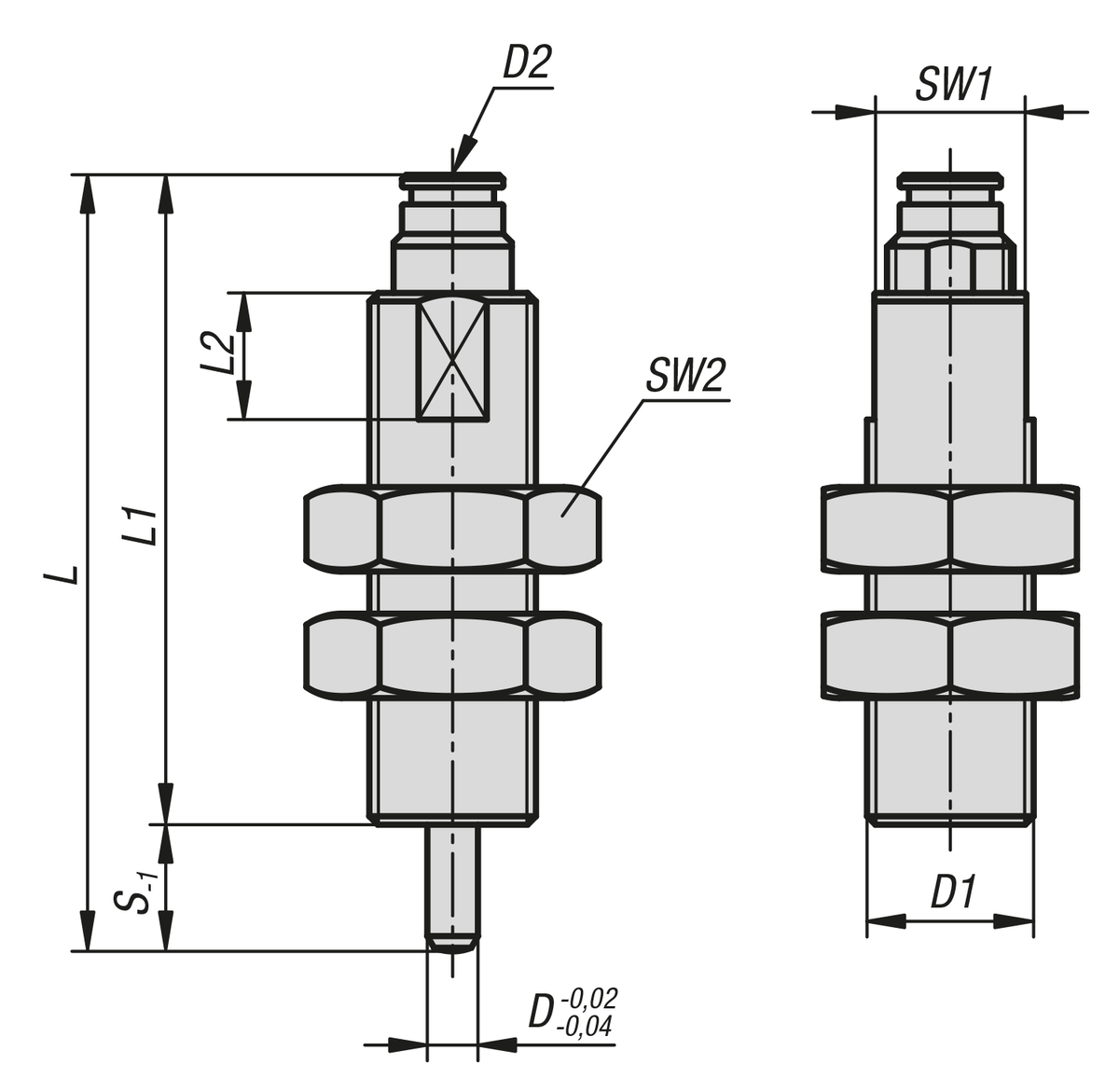

Drawings

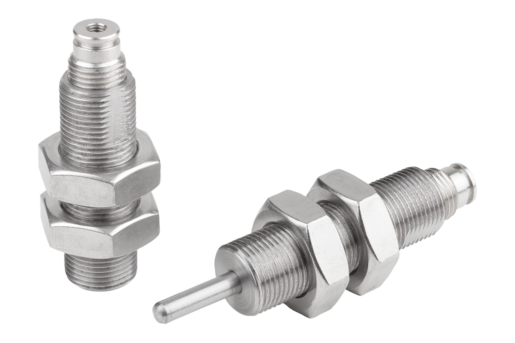

Indexing plungers pneumatic

Item selection/filter

Order No.Main
material
DD1D2LL1L2Travel
S
SW1SW2Operating
pressure
bar
Piston force
at 6 bar
(N)
Spring
retraction force
ca. N
CADAcc.PriceOrder
K1116.1206010free-cutting steel6M20x1,5M58070151018302 - 638,7-35,19,9-6 103.04 $ (USD)
K1116.1206015free-cutting steel6M20x1,5M59277151518302 - 638,7-32,911,8-6 103.04 $ (USD)
K1116.01206010stainless steel6M20x1,5M58070151018302 - 638,7-35,19,9-6 112.79 $ (USD)
K1116.01206015stainless steel6M20x1,5M59277151518302 - 638,7-32,911,8-6 112.79 $ (USD)
K1116.1308010free-cutting steel8M20x1,5M57767151018302 - 639,6-35,311,6-5,1 106.16 $ (USD)
K1116.1308015free-cutting steel8M20x1,5M58974151518302 - 639,6-33,111,6-5,1 106.16 $ (USD)
K1116.01308010stainless steel8M20x1,5M57767151018302 - 639,6-35,311,6-5,1 116.92 $ (USD)
K1116.01308015stainless steel8M20x1,5M58974151518302 - 639,6-33,111,6-5,1 116.92 $ (USD)
