Spring plungers smooth version, self-clamping, plastic

go back

Products
- Spring Plungers
  - Spring plungers smooth version, self-clamping, plastic

Item description/product images

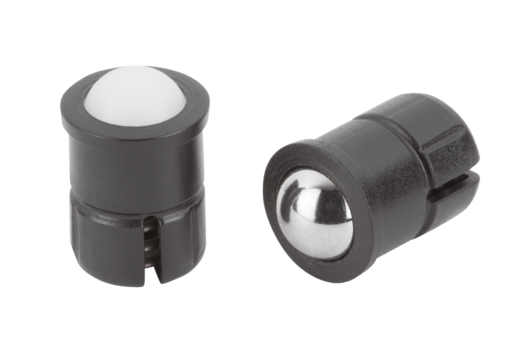

DescriptionMaterial:body thermoplastic.
Spring stainless steel.
Ball stainless steel or POM.Version:body black.
Ball hardened, bright.Note:The self-locking function of the spring plunger enables simple assembly and secure overhead installation.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1171 Spring plungers smooth version, self-clamping, plastic

141 kB

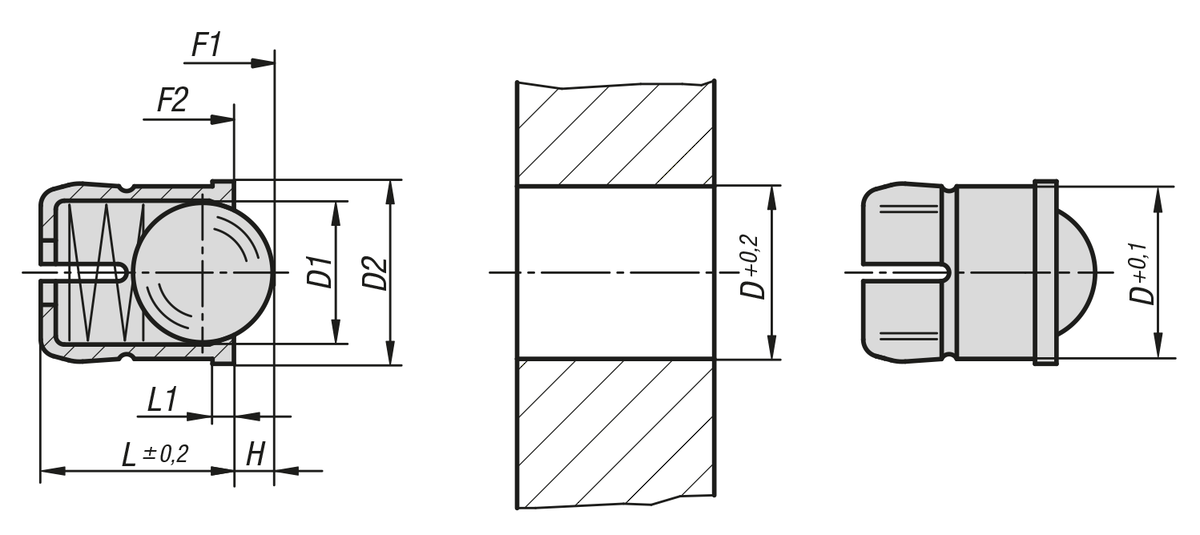

Drawings

Overview of items (compressed)

Item selection/filter

Item No.	Component material	D	D1	D2	L	L1	H	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
K1171.04	stainless steel	4	3	4,6	5	1	0,8	3	6,5	1.49 $ (USD)
K1171.05	stainless steel	5	4	5,6	6	1	1	6	9,4	1.57 $ (USD)
K1171.06	stainless steel	6	5	6,5	7	1	1,6	6,2	12,6	1.60 $ (USD)
K1171.08	stainless steel	8	6,5	8,5	9	1	1,9	10	20,4	1.84 $ (USD)
K1171.10	stainless steel	10	8	11	13,5	1,5	2,4	11,9	22,3	2.98 $ (USD)
K1171.204	POM	4	3	4,6	5	1	0,8	3	6,5	1.78 $ (USD)
K1171.205	POM	5	4	5,6	6	1	1	6	9,4	1.90 $ (USD)
K1171.206	POM	6	5	6,5	7	1	1,6	6,2	12,6	1.95 $ (USD)
K1171.208	POM	8	6,5	8,5	9	1	1,9	10	20,4	2.11 $ (USD)
K1171.210	POM	10	8	11	13,5	1,5	2,4	11,9	22,3	3.35 $ (USD)
