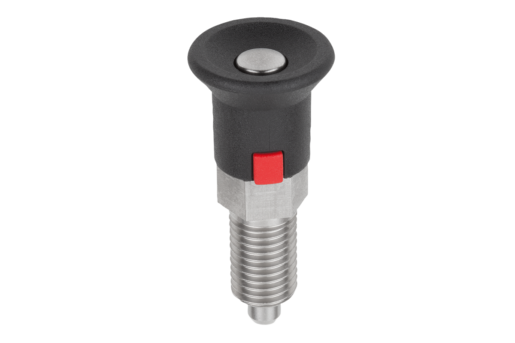

Item description/product images

DescriptionMaterial:Steel version:
threaded body and indexing pin, steel.

Stainless steel version:
indexing pin not hardened.
Threaded body and indexing pin 1.4305 (AISI 303 equivalent).

Mushroom grip, black gray thermoplastic.
Release button, red thermoplastic.Version:Steel version:
threaded body, black oxidized.
Indexing pin hardened, ground and black oxidized.

Stainless steel version:
threaded body, bright.
Indexing pin not hardened, ground and bright.Note:Indexing plungers are used where any change in locking position due to lateral forces should be prevented.
The locking mechanism is activated by pressing the push button.
The red release button enables the indexed position to be changed.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1213_A Indexing plungers with lock, Form A

166 kB

Drawings

Item selection/filter

Order No.	style	Main material	Surface finish body	D	D1	D2	L	L1	L2	L3	Travel S	SW1	Fx30°	return force N	Price
K1213.11051	A	steel	hardened	5	M10x1	25	50,5	17	7	15	5	13	1,3	8-12	25.51 $ (USD)
K1213.12061	A	steel	hardened	6	M12x1,5	25	55,5	20	8	17	6	14	1,8	4-12	25.51 $ (USD)
K1213.13081	A	steel	hardened	8	M16x1,5	33	76	26	10	23	8	19	2,3	10-20	26.91 $ (USD)
K1213.14101	A	steel	hardened	10	M20x1,5	33	82	28	12	25	10	22	2,8	3-23	27.90 $ (USD)
K1213.111051	A	stainless steel	not hardened	5	M10x1	25	50,5	17	7	15	5	13	1,3	8-12	34.04 $ (USD)
K1213.112061	A	stainless steel	not hardened	6	M12x1,5	25	55,5	20	8	17	6	14	1,8	4-12	34.04 $ (USD)
K1213.113081	A	stainless steel	not hardened	8	M16x1,5	33	76	26	10	23	8	19	2,3	10-20	36.76 $ (USD)
K1213.114101	A	stainless steel	not hardened	10	M20x1,5	33	82	28	12	25	10	22	2,8	3-23	38.97 $ (USD)
