DescriptionMaterial:Sleeve, steel or 1.4303 stainless steel.
Spring, 1.4310 stainless steel.
Version:Sleeve, steel nickel-plated, stainless steel bright.
Spring, bright.
Note:Spring sleeves are mainly used as indexing and positioning elements.
RoHS
DownloadHere is all the information as a PDF datasheet:
 Datasheet K1277 Spring sleeves 196 kB

Drawings (total overview)

Spring sleeves

Spring sleeves, Form A

More information

Drawings

Spring sleeves, Form A

Item selection/filter

Item No.Main
material
StyleD

LL2Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
Spring stiffness
N/mm
CADAcc.PriceOrder
K1277.112216steelA2,2167,81210,52,230,53on request
K1277.112608steelA2,683,86,55,21,120,7on request
K1277.113012steelA312698,76,26,82on request
K1277.113016steelA3168,51310,74,88,41,6on request
K1277.113412steelA3,412697,8571,69on request
K1277.113415steelA3,4157,3128,25,913,31,95on request
K1277.114014steelA4148129512,32,45on request
K1277.115016steelA51681310,48152,7on request
K1277.123016stainless steelA31681310,64,88,61,6on request

Spring sleeves, Form B

More information

Drawings

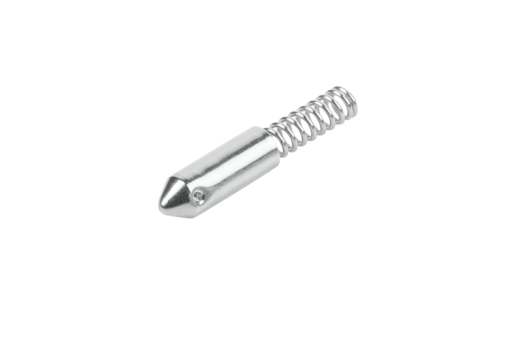

Spring sleeves, Form B

Item selection/filter

Item No.Main
material
StyleD

LL2Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
Spring stiffness
N/mm
CADAcc.PriceOrder
K1277.213011steelB311596,71,63,40,78on request
K1277.213016steelB3168,51310,74,88,41,6on request

Spring sleeves, Form C

More information

Drawings

Spring sleeves, Form C

Item selection/filter

Item No.Main
material
StyleD

D1LL2Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
Spring stiffness
N/mm
CADAcc.PriceOrder
K1277.323013stainless steelC34,1137108,95,37,21,75on request
